When should I use a chevron belt?
Use a chevron belt on inclines up to about 30 degrees where a flat belt would let material slide back down the slope.
CV · Conveyor Belts

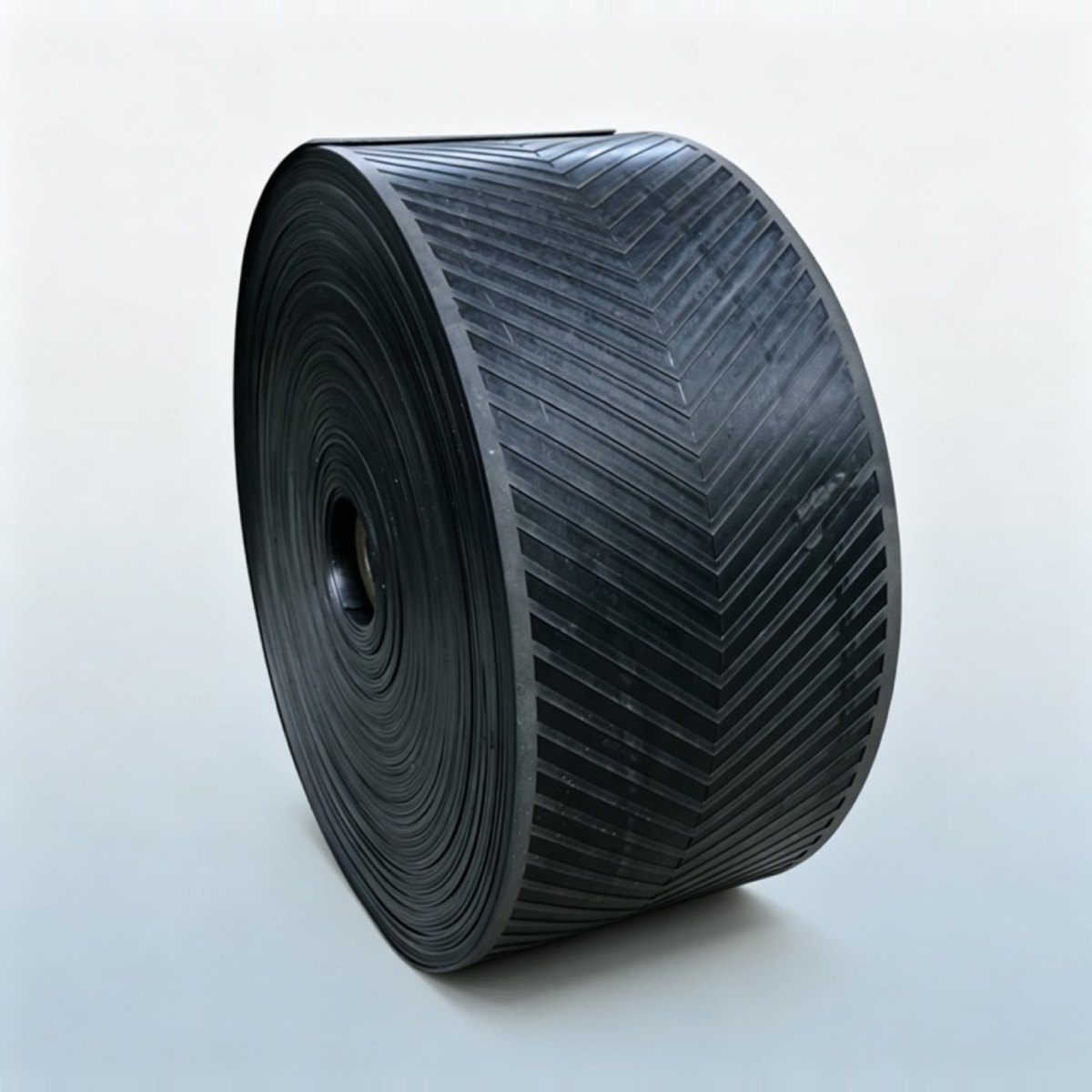

Chevron (Anti-Slip) Conveyor Belt
防滑（人字纹）输送带
Patterned chevron belt that grips loose, wet or powdered bulk and stops rollback on inclined sections up to 40°.
- SKU prefixBELT-CHEVRON
- MOQ1 pc
- Lead time1 month
- StandardCV
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: BELT-CHEVRON
Overview
Chevron (Anti-Slip) Conveyor Belt at a Glance
500–1800 mmBelt width
8–15 mmBelt thick.
15–30 mmChevron h.
ISO 9001 / MACertified · CV
Usage
Usage
Chevron (Cleated) Belt — a belt with moulded V or chevron cleats on the cover that grab material on inclines up to about 30 to 40 degrees without rollback. Where a flat belt would let the load slide back, chevrons let a single conveyor climb, cutting transfers and footprint.
Operating conditions
Operating conditions
| Working temperature | Rubber belt -20 °C to +120 °C; PVC for light indoor duty; EPDM and high-temperature grades for hotter material — confirm grade. |
|---|---|
| Dusty environment | Suitable — the rubber cover is unaffected by dust; skirting and cleaners limit carry-back |
| Moisture & water | Suitable — rubber and PVC covers are water-resistant; select the grade for wet or washdown service |
| Corrosive environment | Cover compound (SBR / EPDM / PVC) plus coated-steel or stainless accessories — confirm for corrosive service |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Conveyor belts are the moving surface that carries bulk material. HBXM supplies chevron, sidewall and wear-resistant belts rated for steep inclines, sticky ores and high-abrasion duty in mining, port and cement plants.
What is a sidewall belt used for?
A sidewall belt has vertical ribs and cleats so it can lift material steeply or even vertically in a compact footprint.
How do I extend belt service life?
Match belt grade to material abrasiveness, align and tension correctly, and keep cleaners and training idlers working to reduce wear.
Do you supply belt with matching splices?
Yes. We cut to length and supply vulcanized or mechanical splice kits so the joint matches the belt construction on site.
Highlights
Features
Belt-width coverage
Covers belt widths 500–1800 mm across standard conveyor sections.
Belt thickness
Thickness 8–15 mm — heavier covers last longer in coarse, abrasive duty.
Chevron height
Cleat height 15–30 mm holds material on steep inclines without rollback.
Cover compound
Cover Rubber / PVC/PVG / PU for oil, heat or general duty as required.
EP fabric carcass
EP100–EP400 warp and weft plies give low elongation and high tensile strength for long centres.
Abrasion-resistant cover
Cover rubber matched to DIN 22102 class W, Y, X or Z according to the material handled.
Quality
1
Cover compound verified
Rubber compounds are tested for abrasion loss and tensile strength on every batch.
2
Ply adhesion tested
Pull-out tests confirm inter-ply adhesion, so plies do not separate under load cycles.
3
Dimensional control
Width, thickness and length are checked against drawing tolerance before shipment.
4
Batch traceability
Each roll carries a batch mark linking it to mill certificates and test records.
