What does a bearing housing do?
It holds the bearing concentric to the shaft, seals it from dust and water, and provides the mounting face that clamps into the idler frame.
TK · Bearing Housings

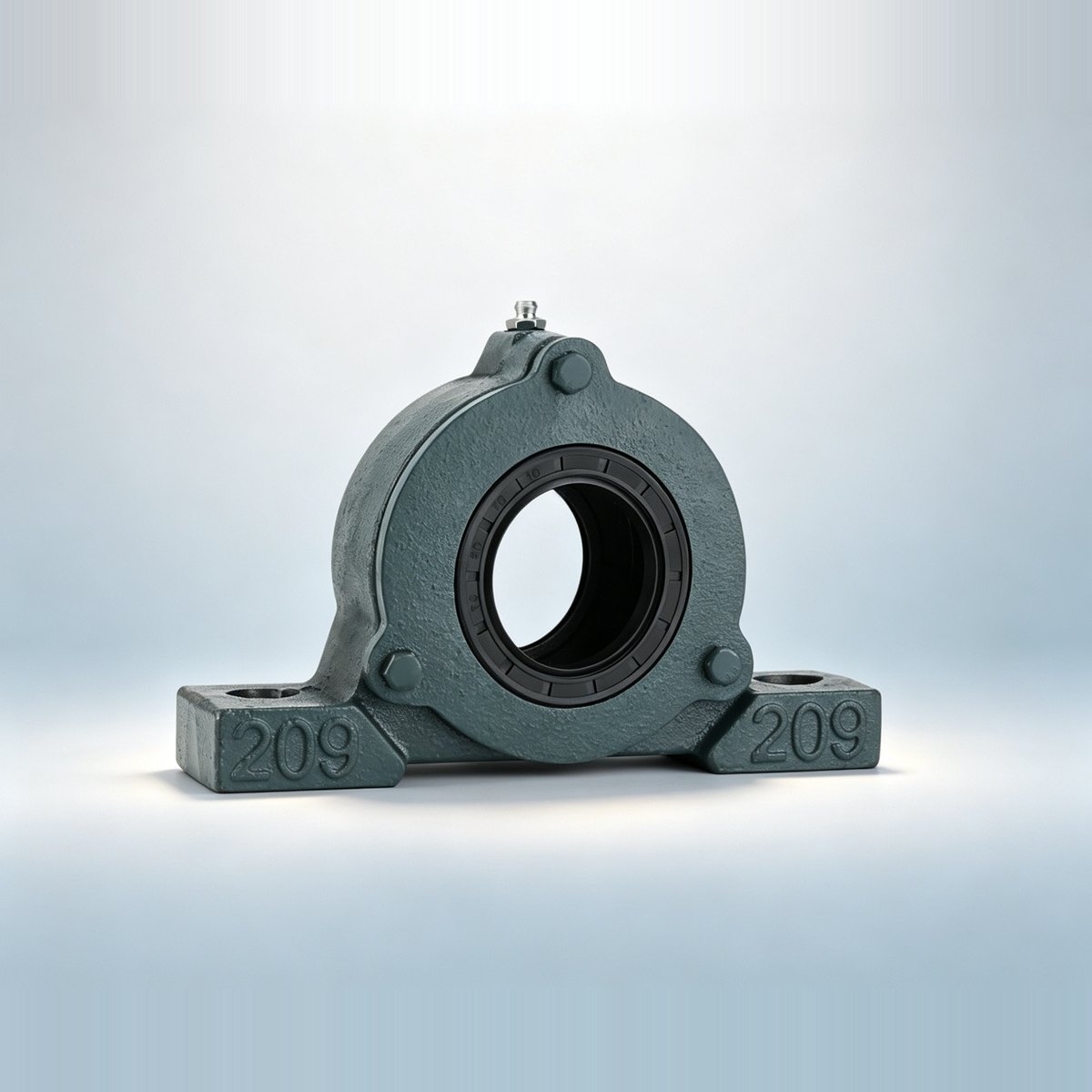

Pillow Block Bearing
立式轴承座
Pillow block bearings, also called pillow bearings or block bearings, in metric and inch bore sizes. Tapered bore for drive and tail shafts, sealed against dust and water, and interchangeable with DTII/TD75 and common OEM housings.
- SKU prefixHOUSINGS-TK
- MOQ100 pcs
- Lead time1 month
- StandardTK
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: HOUSINGS-TK
Overview
Pillow Block Bearing at a Glance
20–30 mmShaft Ø
6204–6206Bearing
LS / CS / DSSeal
ISO 9001 / MACertified · TK
Usage
Usage
Pillow-Block (Vertical) Bearing Housing — the mounted housing that carries a shaft bearing on a drive, bend or take-up pulley, bolted to the structure. (Note: this is the pulley-shaft bearing seat, not the idler TK seal.) It holds the shaft true under radial and axial load and is the interface between rotating and fixed parts.
Operating conditions
Operating conditions
| Working temperature | Ambient range (-20 °C to +40 °C); seal and grease rated to about +80 °C continuous. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Bearing housings seal and locate the idler bearing inside the roll. HBXM stamped housings follow TK and DTII patterns with precision-machined seats and labyrinth grooves that lock grease in and keep contaminants out.
TK vs DTII housing: which pattern do I need?
TK is the common CIS and mining pattern; DTII is the Chinese national belt-conveyor standard. Choose the pattern your idler was built to.
Are HBXM housings interchangeable with original rolls?
Yes, our TK and DTII housings are dimensioned to standard shaft and bore sizes so they drop into existing idler assemblies.
How do I match a housing to my idler?
Match the shaft diameter, bearing bore and sealing pattern; we list these per model so you can cross-reference your current roll.
What is a pillow block bearing?
A pillow block bearing is a bearing set in a cast or stamped housing that bolts to a frame. In belt conveyors the same stamped housing (TK or DTII pattern) seals the idler bearing inside the roll.
What is the difference between a pillow block and a flanged bearing?
A pillow block mounts through bolt holes in its base to a flat surface; a flanged bearing mounts through its round flange to a face. Choose based on your frame geometry and the direction of the load.
Highlights
Features
Shaft Ø
Shaft diameter 20–30 mm with keyway or locking-assembly fit.
Bearing size
Bore 6204–6206 matched to standard roller shafts.
Sealing system
Seals LS / CS / DS block dust and moisture from the cavity.
Housing
Housing PS / CI for the load and duty.
Precision casting
Dimensional accuracy for a concentric shaft and sealing seat.
Sealed labyrinth cap
Blocks dust and moisture at the bearing for long life.
Quality
1
Dimensional accuracy
Bore and seat checked to tolerance.
2
Seal reliability
Cap and labyrinth keep grease in and dirt out.
3
Material integrity
Casting / steel verified for the load rating.
4
Finish options
Coatings for abrasive, wet and coastal duty.
FAQ
Frequently asked questions
What is the difference between a pillow block bearing and a pillow bearing?
Nothing — they are the same part. Pillow bearing is the older, shorter name for a block bearing: a bearing carried in a housing that bolts down to a flat surface with the shaft running horizontally. HBXM supplies it as a matched housing-and-bearing set, not as loose parts.
Do you supply the housing with the bearing already fitted?
Yes. We can ship the housing with the bearing pressed in and the seal in place, so the unit goes straight onto the shaft. Send the shaft diameter, the radial load and the duty and we will confirm the fit and the seal type.
Which seal is fitted as standard?
Labyrinth, for dry and dusty duty — it runs with low drag and lasts longer. Contact (rubber lip) seals are fitted where washdown or flooding is real, accepting the extra friction to keep water out of the grease.
