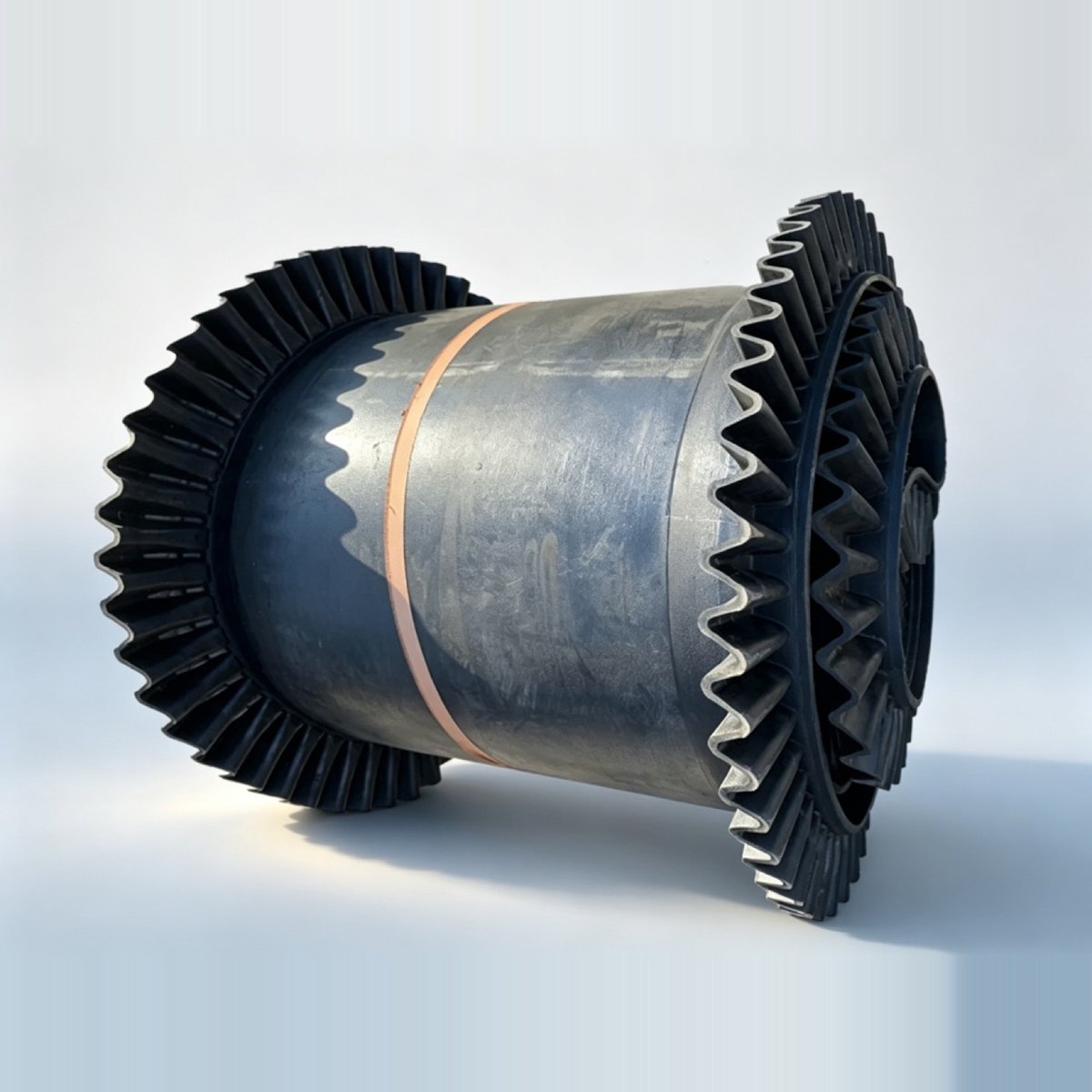

Sidewall (Corrugated) Conveyor Belt
裙边（波状挡边）输送带
Belt with corrugated sidewalls and transverse cleats that conveys material vertically and on steep inclines without rollback.
- SKU prefixBELT-SIDEWALL
- MOQ1 pc
- Lead time1 month
- StandardSW
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: BELT-SIDEWALL
Overview
Sidewall (Corrugated) Conveyor Belt at a Glance
500–1400 mmBelt width
8–15 mmBelt thick.
60–240 mmSidewall h.
ISO 9001 / MACertified · SW
Usage
Usage
Sidewall (Corrugated) Belt — a belt with tall corrugated sidewalls and transverse cleats that carries material vertically or on steep inclines (above 40 degrees) without rollback, replacing skip hoists or bucket elevators in tight plant layouts. The sidewalls contain the load through the whole lift.
Operating conditions
Operating conditions
| Working temperature | Rubber belt -20 °C to +120 °C; PVC for light indoor duty; EPDM and high-temperature grades for hotter material — confirm grade. |
|---|---|
| Dusty environment | Suitable — the rubber cover is unaffected by dust; skirting and cleaners limit carry-back |
| Moisture & water | Suitable — rubber and PVC covers are water-resistant; select the grade for wet or washdown service |
| Corrosive environment | Cover compound (SBR / EPDM / PVC) plus coated-steel or stainless accessories — confirm for corrosive service |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Conveyor belts are the moving surface that carries bulk material. HBXM supplies chevron, sidewall and wear-resistant belts rated for steep inclines, sticky ores and high-abrasion duty in mining, port and cement plants.
What is a sidewall belt used for?
A sidewall belt has vertical ribs and cleats so it can lift material steeply or even vertically in a compact footprint.
How do I extend belt service life?
Match belt grade to material abrasiveness, align and tension correctly, and keep cleaners and training idlers working to reduce wear.
Do you supply belt with matching splices?
Yes. We cut to length and supply vulcanized or mechanical splice kits so the joint matches the belt construction on site.
Highlights
Features
Belt-width coverage
Covers belt widths 500–1400 mm across standard conveyor sections.
Belt thickness
Thickness 8–15 mm — heavier covers last longer in coarse, abrasive duty.
Sidewall height
Sidewall 60–240 mm turns the belt into a high-capacity steep-angle conveyor.
Cleat profile
Cleat profile T-type / C-type / L-type / TS-type matched to the incline and material flow.
EP fabric carcass
EP100–EP400 warp and weft plies give low elongation and high tensile strength for long centres.
Abrasion-resistant cover
Cover rubber matched to DIN 22102 class W, Y, X or Z according to the material handled.
Quality
1
Cover compound verified
Rubber compounds are tested for abrasion loss and tensile strength on every batch.
2
Ply adhesion tested
Pull-out tests confirm inter-ply adhesion, so plies do not separate under load cycles.
3
Dimensional control
Width, thickness and length are checked against drawing tolerance before shipment.
4
Batch traceability
Each roll carries a batch mark linking it to mill certificates and test records.
