Why is a belt cleaner important?
Without cleaning, carryback wears pulleys and idlers, causes mistracking and creates housekeeping and safety hazards under the conveyor.
WC1 · Cleaners

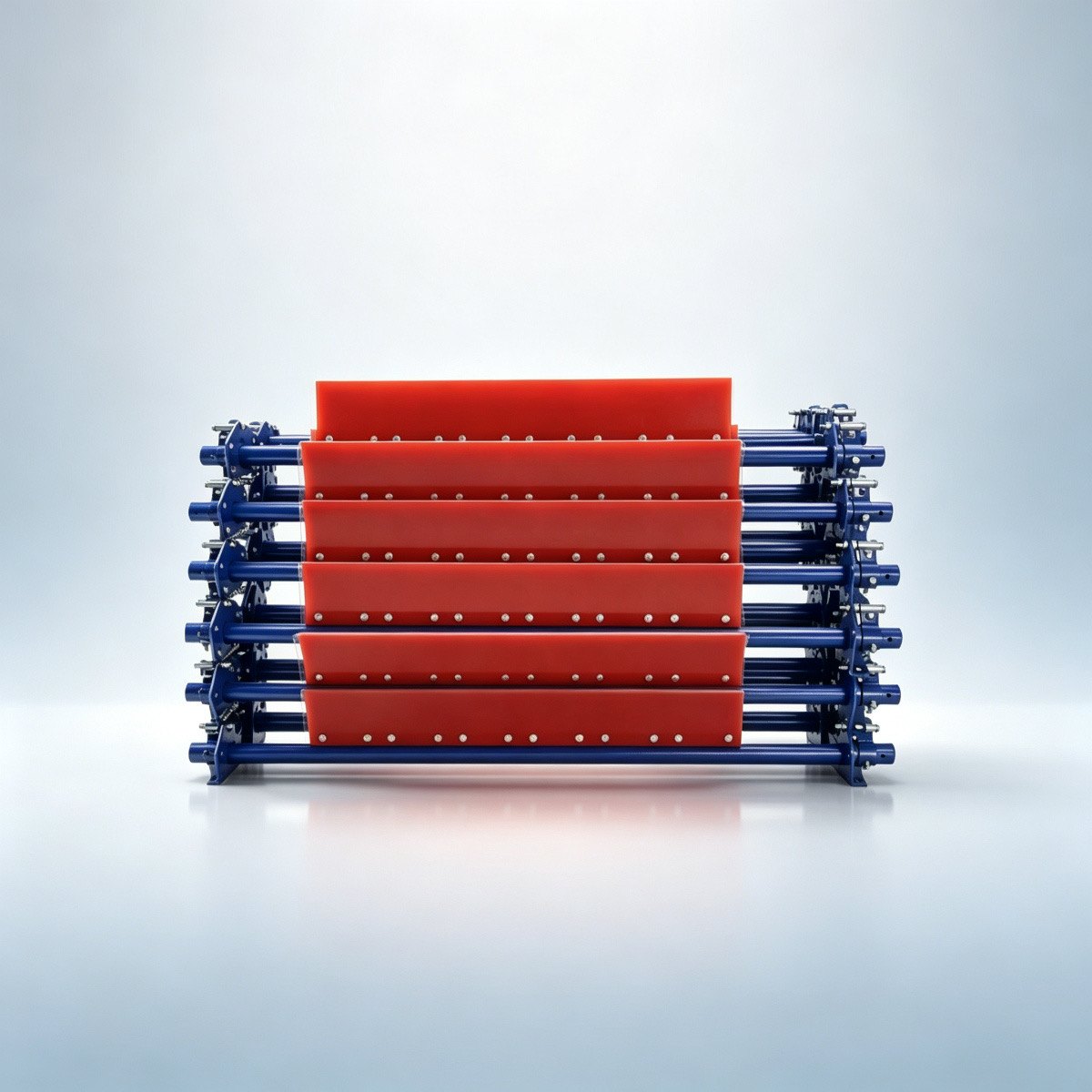

Primary Scraper Cleaner
一级刮板清扫器
A primary belt cleaner with a segmented blade that removes the bulk of carry-back, copes with belt joins and lets you replace one worn segment instead of the whole assembly.
- SKU prefixCLEANERS-WC1
- MOQ10 pcs
- Lead time1 month
- StandardWC1
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: CLEANERS-WC1
Overview
Primary Scraper Cleaner at a Glance
500–1800 mmBelt width
WC / WCPBlade
DTII / TD75 / ISOStandard
ISO 9001 / MACertified · WC1
Usage
Usage
Primary Scraper Cleaner — a 1st-stage scraper mounted tight against the belt at the discharge (head) pulley. It removes the bulk of carryback — wet fines, clay and slurry — the instant material leaves the pulley; this single stage is the most important for keeping the return run clean and is fitted on every loaded conveyor.
Operating conditions
Operating conditions
| Working temperature | PU blades -40 °C to +80 °C; ceramic-tipped blades up to +500 °C — confirm per model. |
|---|---|
| Dusty environment | Suitable — PU or ceramic blades are unaffected by dust; no bearings to contaminate |
| Moisture & water | Suitable — PU blades and coated steel bodies take washdown; stainless for continuous wet duty |
| Corrosive environment | Stainless blade holders available — powder-coated steel for ordinary acid or alkali, stainless for high-salinity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Belt cleaners scrape carryback off the return strand so material does not build up on pulleys, idlers and structure. HBXM offers primary and secondary cleaners with polyurethane or tungsten blades rated for wet, sticky and abrasive ores.
Primary vs secondary cleaner: which do I need?
Use a primary cleaner at the head pulley for bulk carryback, then a secondary cleaner downstream for the fine residual layer.
Which blade material lasts longest?
Polyurethane suits most dry and medium-abrasive ores; tungsten or ceramic-tipped blades are best for very hard, wet and sticky materials.
Can cleaners be retrofitted to an existing conveyor?
Yes. Our cleaners mount to standard stringer widths with adjustable tension and fit most head-pulley arrangements without conveyor modification.
Highlights
Features
Belt-width coverage
Covers belt widths 500–1800 mm across standard conveyor sections.
Blade material
Blades in WC / WCP for a clean wipe and belt care.
Self-adjusting tensioners
Spring / torque-arm tensioners keep blade contact uniform as the blade wears.
Polyurethane blade
PU compound Shore 85–95 A wipes carryback while staying gentle on the belt.
Modular mounting
Adjustable brackets fit B500–B2400 widths and head-pulley layouts.
Quick blade swap
Cartridges swap without removing the frame, cutting downtime.
Quality
1
Blade integrity
One-piece polyurethane blade cast to consistent Shore hardness for a clean wipe.
2
Tensioner reliability
Dual self-adjusting springs hold constant contact across the blade life.
3
Frame strength
Welded beam load-tested for pulley-side installation.
4
Finish options
Epoxy / powder coat or full stainless for port and coastal duty.
FAQ
Frequently asked questions
How many segments do I need?
Enough to cover the belt width with a small gap between them — typically 4–8 segments on a 1000 mm belt. The gaps let each segment follow the belt independently.
What blade material suits my material?
Polyurethane for medium abrasion and a belt cover you want to protect; tungsten carbide for sinter, coke and high-abrasion ore where blade life is the priority.
How do I tension a segmented cleaner?
Set the springs to the manufacturer's datum, run the conveyor loaded for one shift, then re-check. Spring tension should be re-verified at every planned inspection.
