Why is a belt cleaner important?
Without cleaning, carryback wears pulleys and idlers, causes mistracking and creates housekeeping and safety hazards under the conveyor.
WC2 · Cleaners

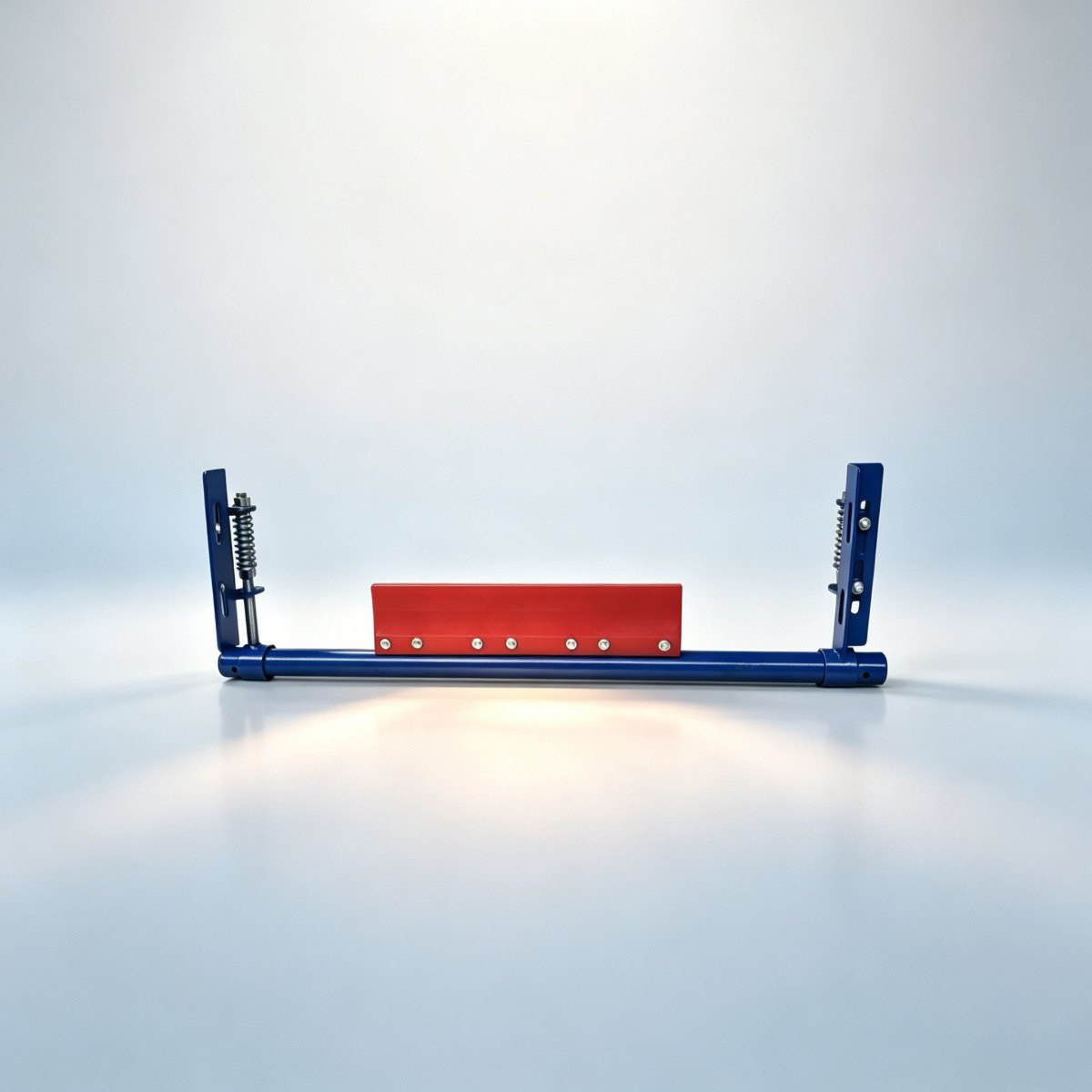

Secondary Cleaner
二级清扫器
Secondary belt cleaners that work behind the primary, removing the fine film that causes build-up on return idlers, mistracking and spillage along the whole conveyor line.
- SKU prefixCLEANERS-WC2
- MOQ10 pcs
- Lead time1 month
- StandardWC2
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: CLEANERS-WC2
Overview
Secondary Cleaner at a Glance
500–2000 mmBelt width
WC / WCPBlade
Standard / ReversibleTip
ISO 9001 / MACertified · WC2
Usage
Usage
Secondary Scraper Cleaner — a 2nd-stage scraper fitted just behind the primary with a finer blade to lift the thin residual film the first stage cannot reach. It finishes the belt to near-dry, preventing fine buildup on return idlers and structure that leads to mistracking and premature wear.
Operating conditions
Operating conditions
| Working temperature | PU blades -40 °C to +80 °C; ceramic-tipped blades up to +500 °C — confirm per model. |
|---|---|
| Dusty environment | Suitable — PU or ceramic blades are unaffected by dust; no bearings to contaminate |
| Moisture & water | Suitable — PU blades and coated steel bodies take washdown; stainless for continuous wet duty |
| Corrosive environment | Stainless blade holders available — powder-coated steel for ordinary acid or alkali, stainless for high-salinity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Belt cleaners scrape carryback off the return strand so material does not build up on pulleys, idlers and structure. HBXM offers primary and secondary cleaners with polyurethane or tungsten blades rated for wet, sticky and abrasive ores.
Primary vs secondary cleaner: which do I need?
Use a primary cleaner at the head pulley for bulk carryback, then a secondary cleaner downstream for the fine residual layer.
Which blade material lasts longest?
Polyurethane suits most dry and medium-abrasive ores; tungsten or ceramic-tipped blades are best for very hard, wet and sticky materials.
Can cleaners be retrofitted to an existing conveyor?
Yes. Our cleaners mount to standard stringer widths with adjustable tension and fit most head-pulley arrangements without conveyor modification.
Highlights
Features
Belt-width coverage
Covers belt widths 500–2000 mm across standard conveyor sections.
Blade material
Blades in WC / WCP for a clean wipe and belt care.
Tip option
Tip Standard / Reversible for wear or reversibility.
Self-adjusting tensioners
Spring / torque-arm tensioners keep blade contact uniform as the blade wears.
Polyurethane blade
PU compound Shore 85–95 A wipes carryback while staying gentle on the belt.
Modular mounting
Adjustable brackets fit B500–B2400 widths and head-pulley layouts.
Quality
1
Blade integrity
One-piece polyurethane blade cast to consistent Shore hardness for a clean wipe.
2
Tensioner reliability
Dual self-adjusting springs hold constant contact across the blade life.
3
Frame strength
Welded beam load-tested for pulley-side installation.
4
Finish options
Epoxy / powder coat or full stainless for port and coastal duty.
