Why is a belt cleaner important?
Without cleaning, carryback wears pulleys and idlers, causes mistracking and creates housekeeping and safety hazards under the conveyor.
YHH · Cleaners

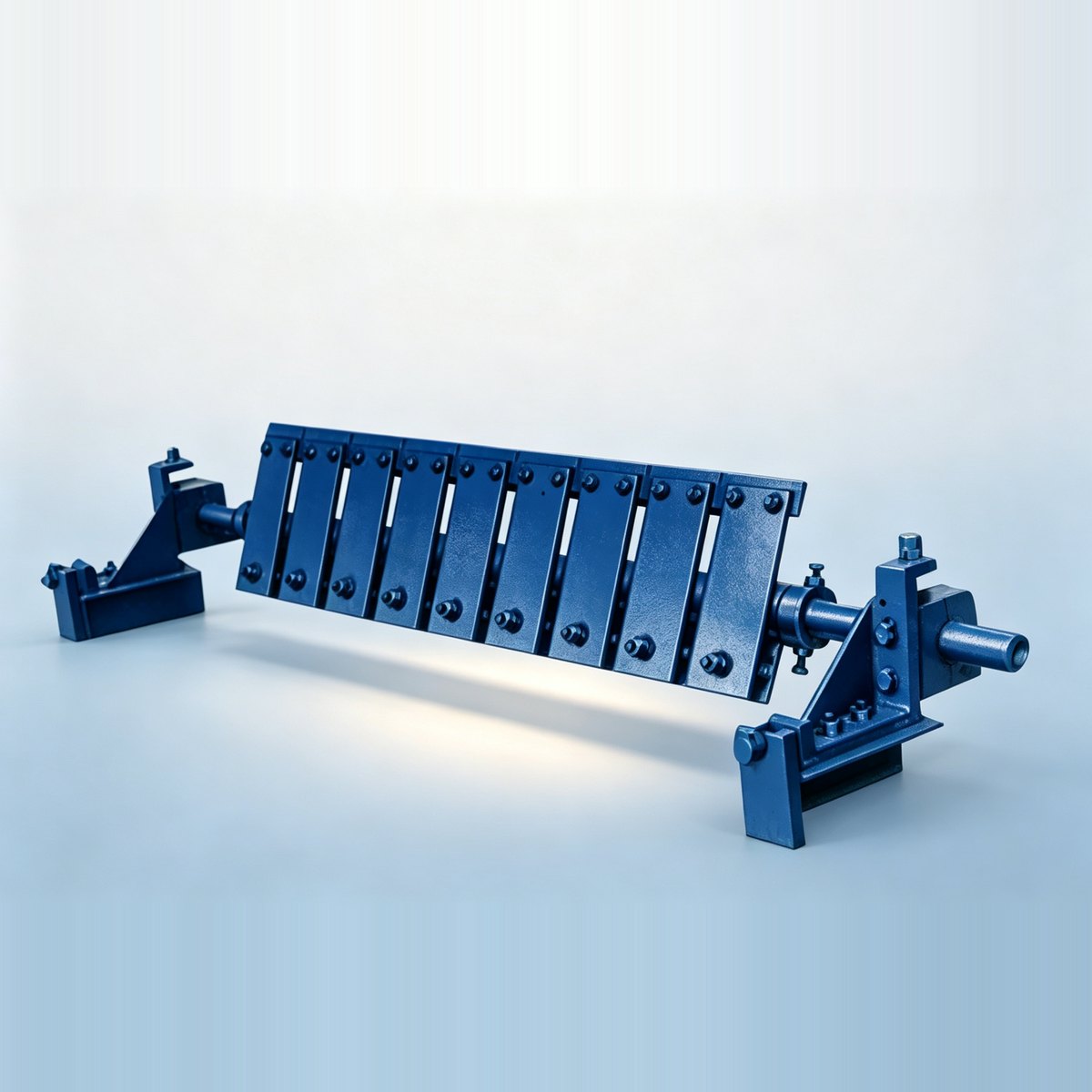

Rubber Alloy Belt Cleaner (YH-H)
橡胶合金清扫器(YH-H)
Multi-blade rubber alloy belt cleaner (YH-H) with individually bolted blades for even scraping pressure across the full belt width.
- SKU prefixCLEANERS-YHH
- MOQ10 pcs
- Lead time1 month
- StandardYHH
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: CLEANERS-YHH
Overview
Rubber Alloy Belt Cleaner (YH-H) at a Glance
500–2000 mmBelt width
DTII / TD75 / ISOStandard
DTII / TD75 / ISOStandard
ISO 9001 / MACertified · YHH
Usage
Usage
Rubber-Alloy Belt Cleaner (YH-H) — a primary (1st-stage) scraper with a tungsten-alloy blade in a rubber mount at the head pulley. The alloy edge slices through wet, sticky or frozen carryback that a soft blade cannot remove, and resists the impact of hard lumps, so it is the first line of defence on high-adhesion ores, coal wash and cement.
Operating conditions
Operating conditions
| Working temperature | PU blades -40 °C to +80 °C; ceramic-tipped blades up to +500 °C — confirm per model. |
|---|---|
| Dusty environment | Suitable — PU or ceramic blades are unaffected by dust; no bearings to contaminate |
| Moisture & water | Suitable — PU blades and coated steel bodies take washdown; stainless for continuous wet duty |
| Corrosive environment | Stainless blade holders available — powder-coated steel for ordinary acid or alkali, stainless for high-salinity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Belt cleaners scrape carryback off the return strand so material does not build up on pulleys, idlers and structure. HBXM offers primary and secondary cleaners with polyurethane or tungsten blades rated for wet, sticky and abrasive ores.
Primary vs secondary cleaner: which do I need?
Use a primary cleaner at the head pulley for bulk carryback, then a secondary cleaner downstream for the fine residual layer.
Which blade material lasts longest?
Polyurethane suits most dry and medium-abrasive ores; tungsten or ceramic-tipped blades are best for very hard, wet and sticky materials.
Can cleaners be retrofitted to an existing conveyor?
Yes. Our cleaners mount to standard stringer widths with adjustable tension and fit most head-pulley arrangements without conveyor modification.
Highlights
Features
Belt-width coverage
Covers belt widths 500–2000 mm across standard conveyor sections.
Rubber contact
Rubber surface adds grip and cushions the load at impact.
Self-adjusting tensioners
Spring / torque-arm tensioners keep blade contact uniform as the blade wears.
Polyurethane blade
PU compound Shore 85–95 A wipes carryback while staying gentle on the belt.
Modular mounting
Adjustable brackets fit B500–B2400 widths and head-pulley layouts.
Quick blade swap
Cartridges swap without removing the frame, cutting downtime.
Quality
1
Blade integrity
One-piece polyurethane blade cast to consistent Shore hardness for a clean wipe.
2
Tensioner reliability
Dual self-adjusting springs hold constant contact across the blade life.
3
Frame strength
Welded beam load-tested for pulley-side installation.
4
Finish options
Epoxy / powder coat or full stainless for port and coastal duty.
