What is the difference between drive and tail pulleys?
The drive pulley is powered by the motor and pulls the belt; the tail pulley is an unpowered redirect at the loading end, often with a take-up.
SHM · Pulleys

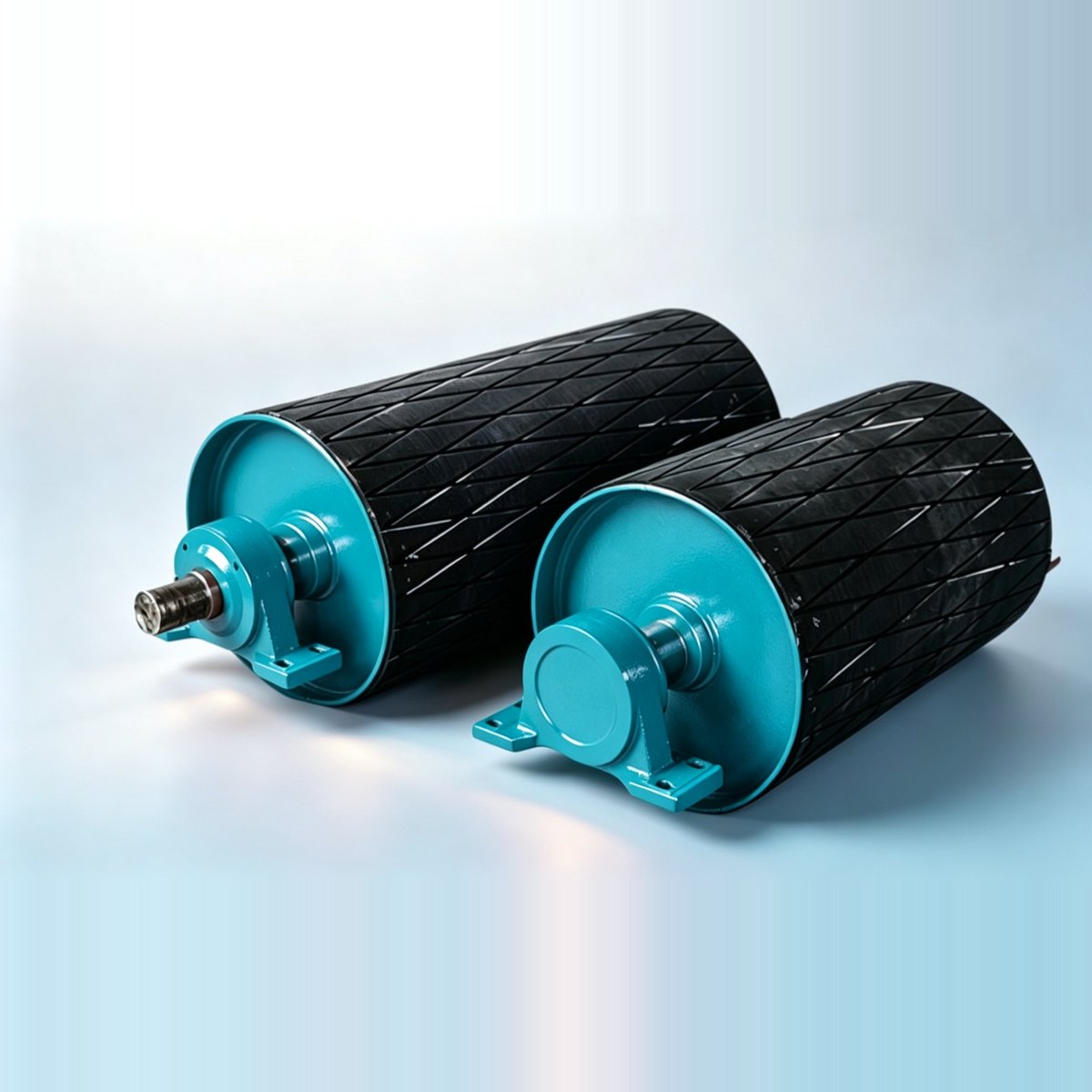

Lagged Drive Pulley
包胶传动滚筒
Pulley lagging for the conveyor pulley — rubber or ceramic, vulcanised or bolt-on. It raises friction at the drive and extends both shell and belt life.
- SKU prefixPULLEYS-SHM
- MOQ1 pc
- Lead time1 month
- StandardSHM
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: PULLEYS-SHM
Overview
Lagged Drive Pulley at a Glance
250–800 mmPulley Ø
500–1600 mmBelt width
2.2–30 kWPower
ISO 9001 / MACertified · SHM
Usage
Usage
Rubber-Lagged Drive Pulley — a drive pulley coated with rubber lagging for friction and belt protection. The lagging grips the belt, spreads the drive load and cushions the surface so the belt cover is not scuffed; the default choice for most drives.
Operating conditions
Operating conditions
| Working temperature | Ambient range (-20 °C to +40 °C); rubber or ceramic lagging rated about -20 °C to +80 °C. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Pulleys drive, redirect and tension the conveyor belt across the system. HBXM pulleys are available from 200 mm to 1600 mm diameter with static or vulcanized rubber lagging, and are dynamically balanced for smooth running at high belt speeds.
Why add rubber lagging to a pulley?
Lagging increases friction so the belt does not slip, protects the shell from wear, and can be grooved to shed water and mud.
What is a motorized pulley?
A motorized pulley encloses the motor and gearbox inside the drum, giving a compact, sealed, low-maintenance drive for confined spaces.
How do I size a conveyor pulley?
Size by shaft and bearing load from belt tension and torque, then choose diameter for the target belt speed and lagging type.
What is a conveyor belt drive pulley?
A conveyor belt drive pulley is the powered drum that transmits motor torque to the belt through friction. HBXM drive pulleys use vulcanized rubber or ceramic lagging to grip the belt without slip.
Highlights
Features
Precision shell Ø
Welded drum Ø250–800 mm, machined and dynamically balanced for low vibration.
Belt-width coverage
Covers belt widths 500–1600 mm across standard conveyor sections.
Motor power
Rated 2.2–30 kW to match your conveyor duty.
Heavy-duty welded drum
Seamless steel pipe body with reinforced end discs for high torque transfer.
Custom lagging
Plain, diamond, ceramic or PU lagging for grip, wear life and belt traction.
Precision machining
Run-out ≤0.5 mm with shaft keyway machined to drawing.
Quality
1
Drum integrity
Weld and wall checked for the rated torque and belt tension.
2
Lagging bond
Lagging vulcanized / bonded for no slip under full load.
3
Balance accuracy
Balanced to the required class for low vibration.
4
Finish options
Coatings for abrasive and corrosive plants.
FAQ
Frequently asked questions
Why lag a pulley at all?
Lagging raises the friction coefficient so the drive can transmit its torque without slip. Without it, a wet or dusty pulley can slip at a fraction of the belt's rated tension.
Grooved or plain rubber?
Plain rubber for dry, clean duty. Grooved or herringbone patterns help water and fines escape the nip, which is what restores grip in wet conditions.
How thick should lagging be?
Typically 8–12 mm for rubber and 12–20 mm for ceramic tiles, but the right answer follows from the required traction and the pulley diameter — we calculate it for each drive.
