How do self-aligning idlers work?
A guide roll senses belt edge pressure and pivots the whole idler set so the belt is nudged back toward the centerline.
TKU · Training Idlers
Hydraulic Belt Training Device
液压皮带纠偏装置

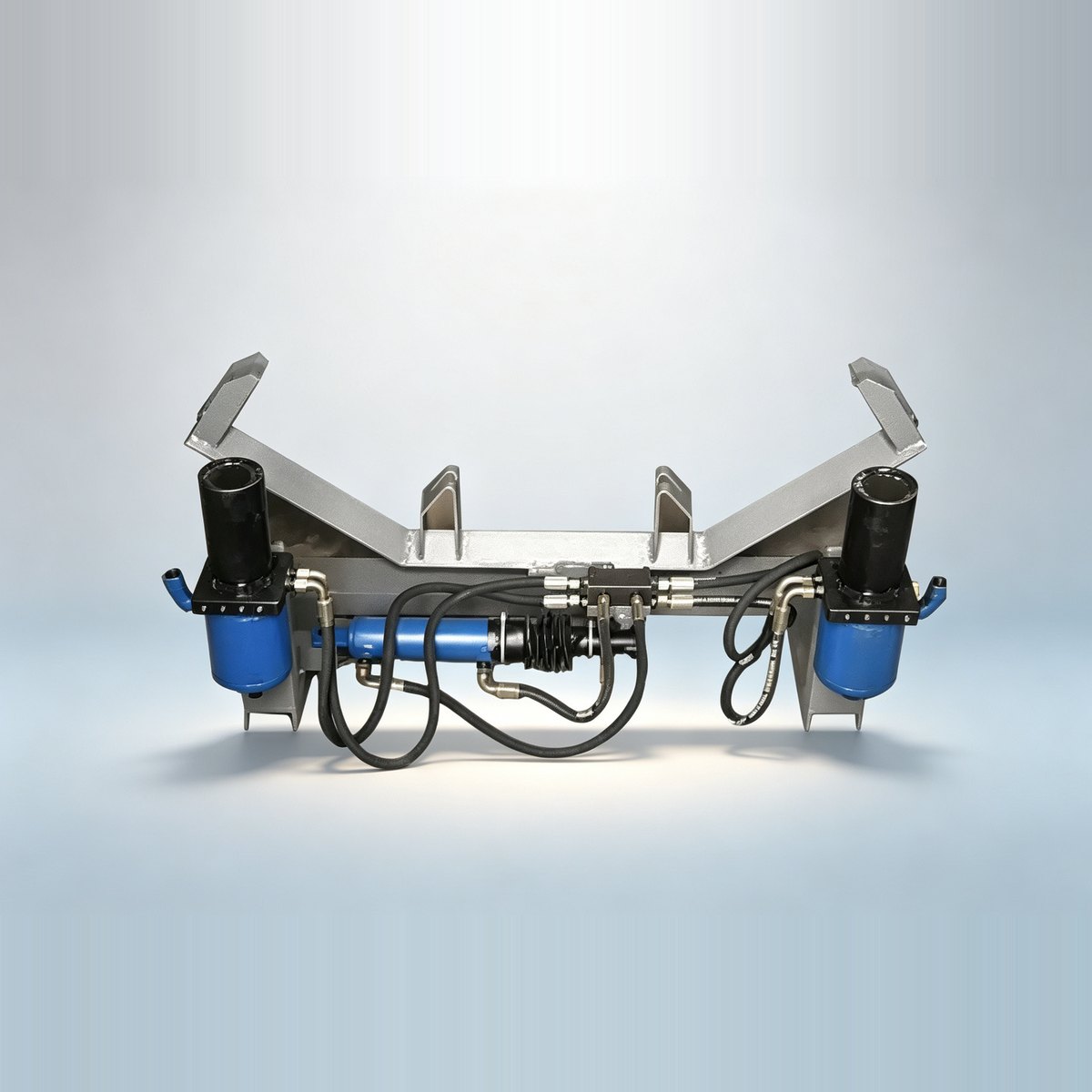

Hydraulic belt training devices that correct belt drift automatically — a hydraulic sensor senses the offset and the roller assembly steers the belt back without operator input.
- SKU prefixPULLEYS-TKU
- MOQ10 pcs
- Lead time1 month
- StandardTKU
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: PULLEYS-TKU
Overview
Hydraulic Belt Training Device at a Glance
200–630 mmPulley Ø
500–1600 mmBelt width
20–45 mmShaft Ø
ISO 9001 / MACertified · TKU
Usage
Usage
Hydraulic Belt Training Device — an actuator, a hydraulic cylinder, that nudges the belt or a training frame back to centre when sensors detect drift. On very long or heavily loaded lines it provides strong, powered correction that passive idlers cannot, protecting the belt from edge damage.
Operating conditions
Operating conditions
| Working temperature | Ambient service range (-20 °C to +40 °C); sealed bearings rated for the same band. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Training idlers automatically steer the belt back to center when it begins to drift. HBXM self-aligning idlers use a pivoting frame that responds to belt edge force, correcting mistracking before it damages the belt or structure.
Where should training idlers be placed?
Place them every 10 to 15 idlers along both carry and return strands, especially after transfers and on long centers.
Do they need a power supply?
No. They are fully mechanical and react to belt forces, so they work without sensors, wiring or controls.
How often do they need adjustment?
Once installed they are self-correcting and typically need no routine adjustment, only inspection during planned maintenance.
Highlights
Features
Precision shell Ø
Guide-roll Ø200–630 mm machined for smooth, stable belt tracking.
Hydraulic coupling
Fluid coupling gives a soft start under load.
Belt-width coverage
Covers belt widths 500–1600 mm across standard conveyor sections.
Shaft Ø
Shaft diameter 20–45 mm with keyway or locking-assembly fit.
Spiral / rubber disc rolls
Guide the belt back to center automatically as it drifts.
Free-pivot frame
Responds to mistracking without external power.
Quality
1
Guidance reliability
Geometry tuned for effective, stable centering.
2
Bearing protection
Seals keep contaminants from the cavity.
3
Frame strength
Welded / pivoted structure load-tested.
4
Finish options
Coatings for abrasive and wet duty.
FAQ
Frequently asked questions
How is this different from a self-aligning idler?
A self-aligning idler works purely from the belt's own edge forces. A hydraulic trainer uses a sensing roller and a hydraulic actuator, so it reacts earlier and is far more effective on long, heavily loaded or reversible belts.
Where should a hydraulic trainer be installed?
On the return strand, 5–15 m ahead of the drive pulley for reversible conveyors, or ahead of the point where the belt leaves the structure for one-way belts.
Does it need a power supply?
No. The actuator is driven hydraulically by the belt itself, so the device works with no electrical connection.
