What safety devices does a conveyor need?
At minimum, pull-cord emergency stop along the length, plus belt sway and speed switches that trip the drive on fault.
SKB · Safety Devices

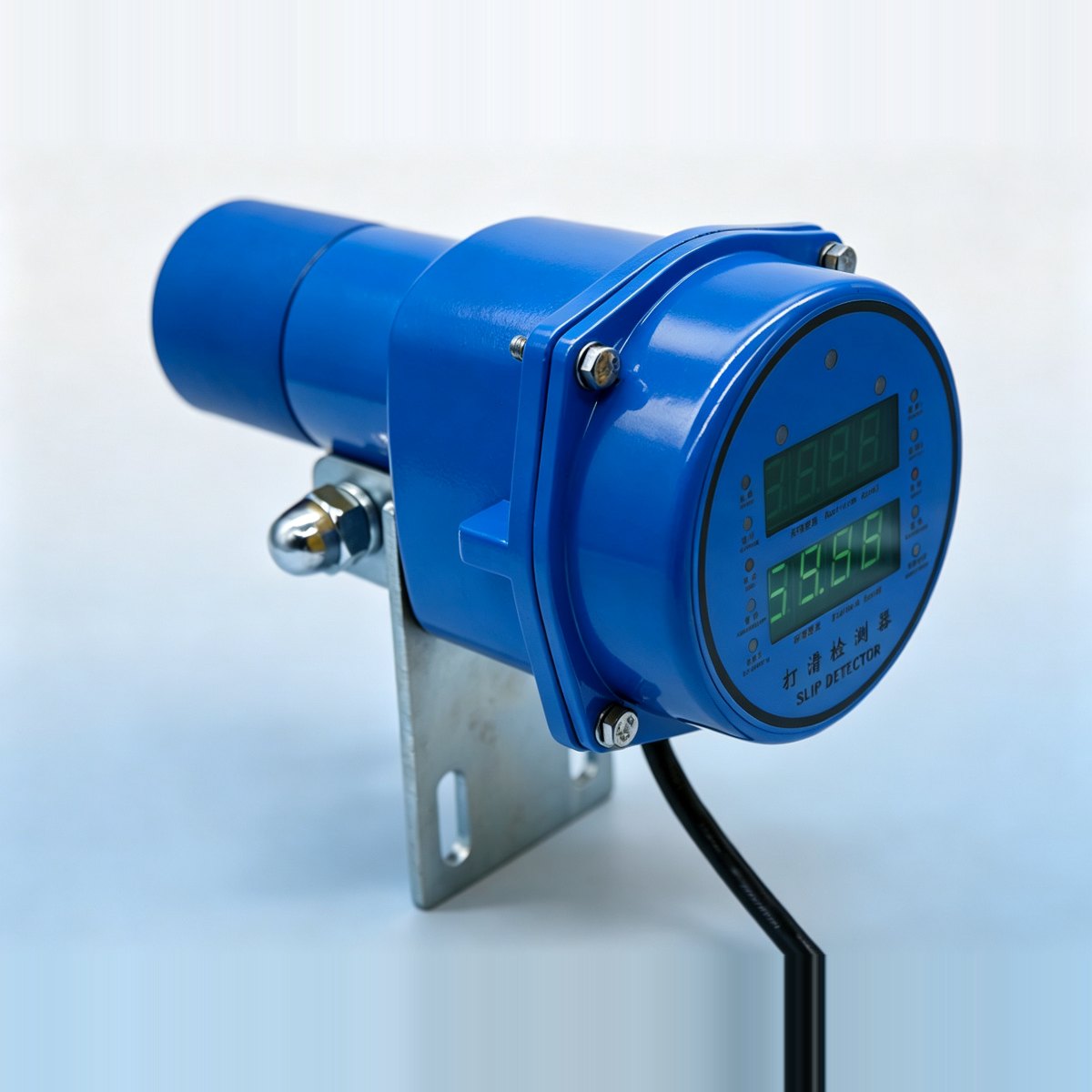

Belt Slippage Detector
皮带打滑检测器
A belt slip detector that trips the conveyor when the belt slows below the set point — the cheap sensor that prevents an expensive belt burn.
- SKU prefixSPECIAL-SKB
- MOQ10 pcs
- Lead time1 month
- StandardSKB
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: SPECIAL-SKB
Overview
Belt Slippage Detector at a Glance
Slip detectFunction
AdjustableSetpoint
IP65Protection
ISO 9001 / MACertified · SKB
Usage
Usage
Belt Slip Detector — a switch that compares pulley speed with belt speed and alarms or stops when the belt slips on the drive. Slip means the belt is being rubbed raw and can ignite from friction heat; the detector stops the conveyor before a cover fire or major tear. (Distinct from the zero-speed switch, which watches whether the belt is moving at all.)
Operating conditions
Operating conditions
| Working temperature | Ambient range (-20 °C to +40 °C); IP65 enclosures for wet and dusty sites. |
|---|---|
| Dusty environment | Suitable — IP65 enclosures protect switches, pull-cords and sensors |
| Moisture & water | Suitable — IP65 enclosures for wet, humid and washdown areas |
| Corrosive environment | IP65 enclosures in coated steel or stainless steel for corrosion-prone plants |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Safety devices protect personnel and equipment around the conveyor. HBXM supplies pull-cord switches, belt sway and speed monitors, and emergency stops that integrate with your plant shutdown logic.
How does a pull-cord switch work?
A tensioned cable runs the conveyor length; pulling it anywhere latches the switch and cuts power to the drive through your shutdown logic.
Are these devices explosion-proof?
We offer Ex d and Ex ib rated units for coal, grain and other hazardous areas; specify your zone when ordering.
Can they connect to an existing PLC?
Yes. Our switches output dry contacts or 4-20 mA signals that drop into standard PLC and relay shutdown circuits.
Highlights
Features
Slip detection
Senses belt slip at the drive and signals for action.
Field adjustable
Setpoint tuned on site to the conveyor profile.
Belt misalignment switch
Trips on drift to protect the frame and belt.
Pull-cord emergency
Full-length rope stop along the conveyor length.
Zero-speed monitor
Detects belt slip or stall for safe shutdown.
Rugged enclosure
Die-cast or stainless, IP65 sealed.
Quality
1
Trip reliability
Mechanism tested for repeatable action.
2
Seal integrity
Enclosure keeps dust and washdown out.
3
Electrical safety
Isolated contacts and certified components.
4
Finish options
Coatings for corrosive and outdoor duty.
