How do self-aligning idlers work?
A guide roll senses belt edge pressure and pivots the whole idler set so the belt is nudged back toward the centerline.
ITD · Training Idlers
Integrated Belt Training Device
集成式纠偏装置

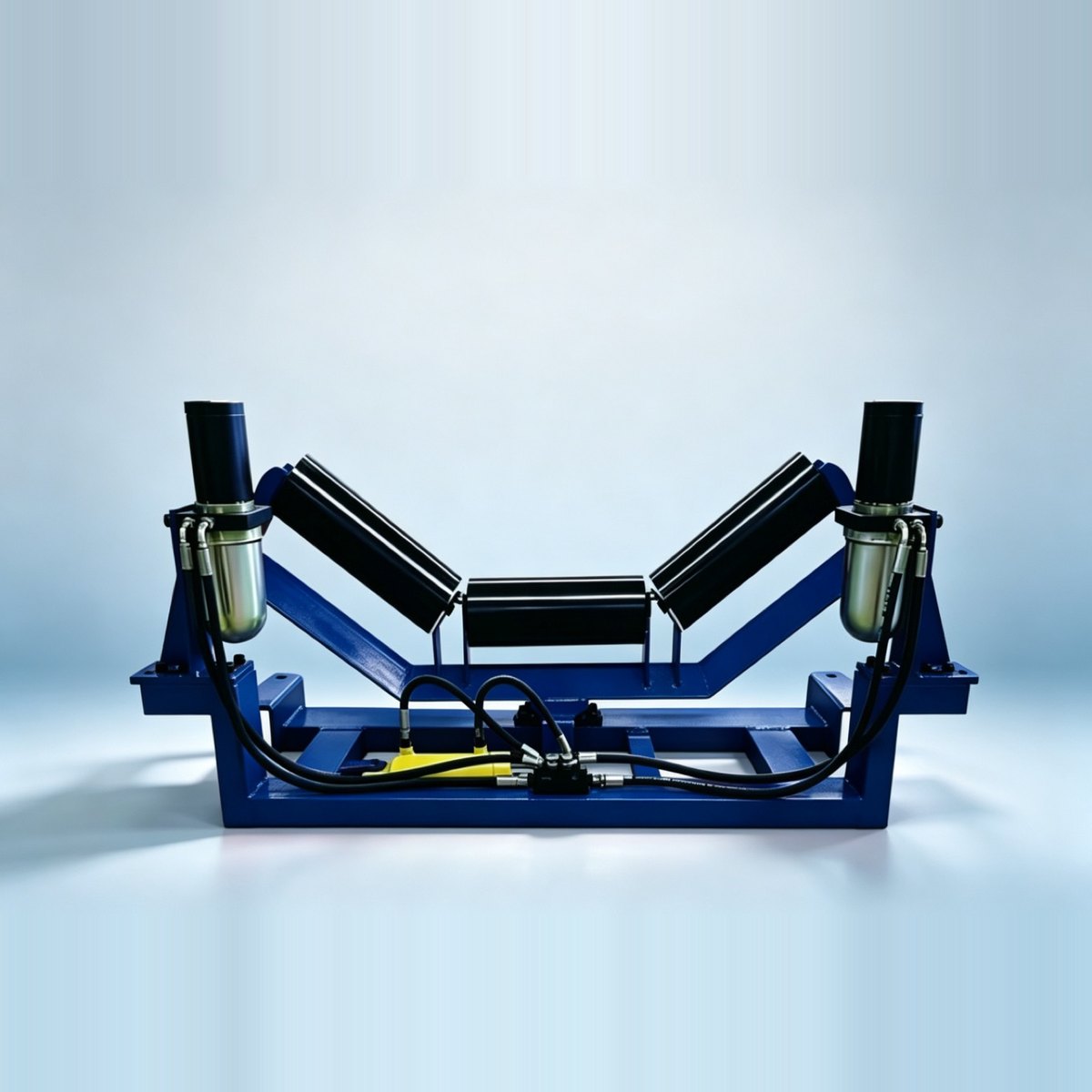

A conveyor belt roller that also trains the belt. The assembly corrects misalignment on the carrying side without external power — the belt's own edge force drives the correction.
- SKU prefixTRACKING-ITD
- MOQ10 pcs
- Lead time1 month
- StandardITD
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: TRACKING-ITD
Overview
Integrated Belt Training Device at a Glance
500–2000 mmBelt width
Hydraulic / PneumaticActuator
DTII / TD75 / ISOStandard
ISO 9001 / MACertified · ITD
Usage
Usage
Integrated Training Device — a complete, factory-set belt-alignment unit, often with rollers, pivot and sometimes powered assist, that mounts as one block to correct drift automatically. It gives consistent, hands-off training on critical lines without field tuning, and some versions handle both carrying and return strands.
Operating conditions
Operating conditions
| Working temperature | Ambient service range (-20 °C to +40 °C); sealed bearings rated for the same band. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Training idlers automatically steer the belt back to center when it begins to drift. HBXM self-aligning idlers use a pivoting frame that responds to belt edge force, correcting mistracking before it damages the belt or structure.
Where should training idlers be placed?
Place them every 10 to 15 idlers along both carry and return strands, especially after transfers and on long centers.
Do they need a power supply?
No. They are fully mechanical and react to belt forces, so they work without sensors, wiring or controls.
How often do they need adjustment?
Once installed they are self-correcting and typically need no routine adjustment, only inspection during planned maintenance.
Highlights
Features
Belt-width coverage
Covers belt widths 500–2000 mm across standard conveyor sections.
Actuator
Actuator Hydraulic / Pneumatic for automatic belt training.
Spiral / rubber disc rolls
Guide the belt back to center automatically as it drifts.
Free-pivot frame
Responds to mistracking without external power.
Heavy-duty shaft
Machined for smooth rotation under load.
Sealed bearings
Labyrinth protection in dusty plants.
Quality
1
Guidance reliability
Geometry tuned for effective, stable centering.
2
Bearing protection
Seals keep contaminants from the cavity.
3
Frame strength
Welded / pivoted structure load-tested.
4
Finish options
Coatings for abrasive and wet duty.
FAQ
Frequently asked questions
How quickly will a trainer correct a badly off-centre belt?
On a 1000 mm belt, a correctly installed trainer brings the belt back within about 20–30 m of belt travel. If it does not, the cause is usually that the trainer is too close to the pulley or the belt is being pulled by something else — a seized idler, an off-square frame or a build-up on the pulley.
Does the belt have to be running to adjust it?
Yes, tracking can only be set with the belt running and loaded. Run at low speed first and watch the belt edge on the return strand, which shows what the carrying side is doing.
My belt runs to one side only when loaded. Is that a tracking problem?
Often not. If it tracks straight empty and drifts loaded, look first at the loading point — the chute is almost always dropping the load off centre, and no trainer can out-vote that.
