How do self-aligning idlers work?
A guide roll senses belt edge pressure and pivots the whole idler set so the belt is nudged back toward the centerline.
SWY · Training Idlers

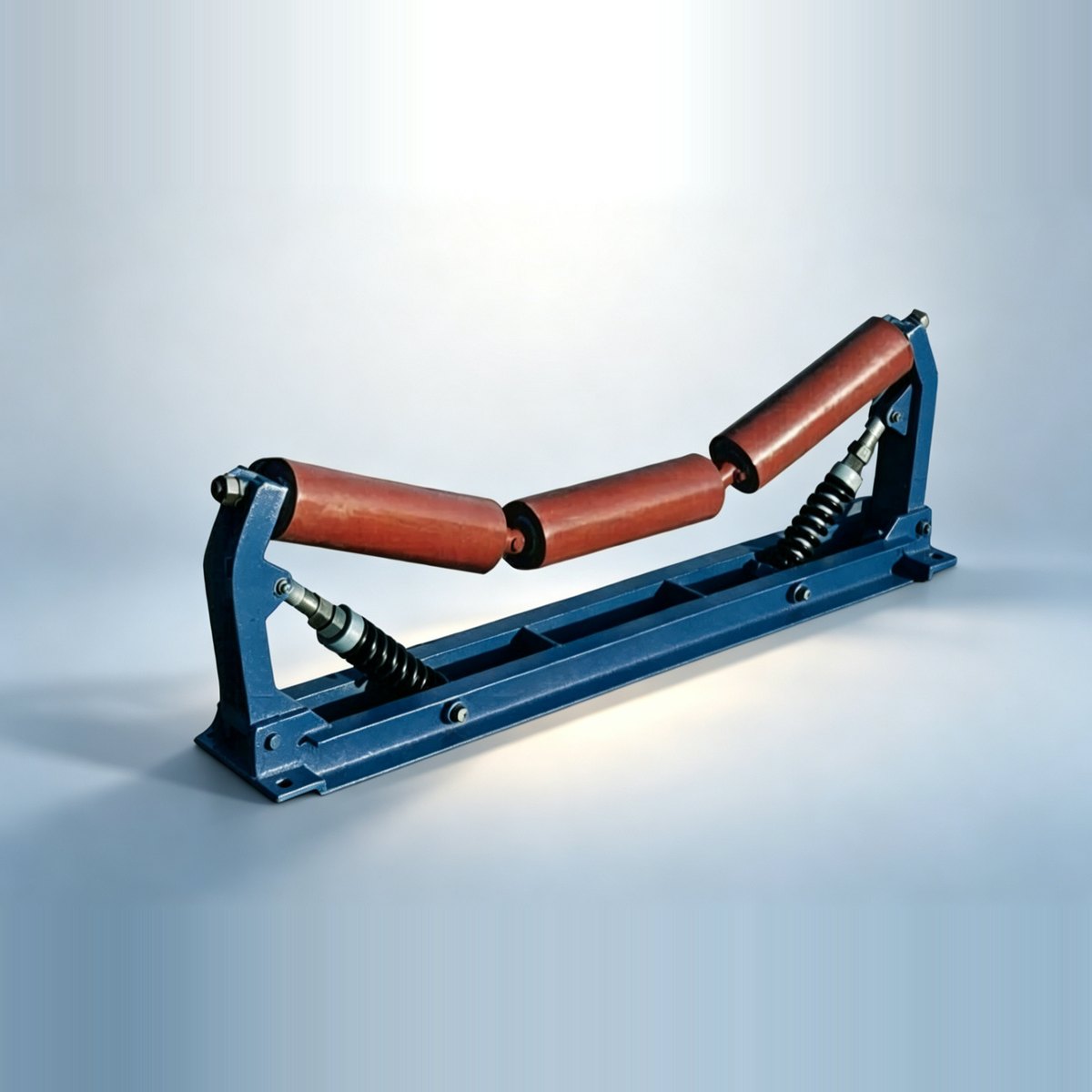

Spring Training Idler Set
弹簧纠偏托辊组
Spring training idlers with a sprung pivot that nudges the belt back on line and absorbs impact at the same time.
- SKU prefixTRACKING-SWY
- MOQ10 pcs
- Lead time1 month
- StandardSWY
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: TRACKING-SWY
Overview
Spring Training Idler Set at a Glance
500–1800 mmBelt width
10° / 15° / 20°Trip angle
DTII / TD75 / ISOStandard
ISO 9001 / MACertified · SWY
Usage
Usage
Spring Training Idler Set — a training set whose rollers sit in a spring-loaded, offset frame that snaps the belt back to centre when it drifts. Simple, robust and power-free, it suits remote or low-maintenance lines and gives continuous, gentle correction.
Operating conditions
Operating conditions
| Working temperature | Ambient service range (-20 °C to +40 °C); sealed bearings rated for the same band. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Training idlers automatically steer the belt back to center when it begins to drift. HBXM self-aligning idlers use a pivoting frame that responds to belt edge force, correcting mistracking before it damages the belt or structure.
Where should training idlers be placed?
Place them every 10 to 15 idlers along both carry and return strands, especially after transfers and on long centers.
Do they need a power supply?
No. They are fully mechanical and react to belt forces, so they work without sensors, wiring or controls.
How often do they need adjustment?
Once installed they are self-correcting and typically need no routine adjustment, only inspection during planned maintenance.
Highlights
Features
Belt-width coverage
Covers belt widths 500–1800 mm across standard conveyor sections.
Trip angle
Trip threshold 10° / 15° / 20° for safe shut-down.
Spiral / rubber disc rolls
Guide the belt back to center automatically as it drifts.
Free-pivot frame
Responds to mistracking without external power.
Heavy-duty shaft
Machined for smooth rotation under load.
Sealed bearings
Labyrinth protection in dusty plants.
Quality
1
Guidance reliability
Geometry tuned for effective, stable centering.
2
Bearing protection
Seals keep contaminants from the cavity.
3
Frame strength
Welded / pivoted structure load-tested.
4
Finish options
Coatings for abrasive and wet duty.
