Why is a belt cleaner important?
Without cleaning, carryback wears pulleys and idlers, causes mistracking and creates housekeeping and safety hazards under the conveyor.
PLV · Cleaners

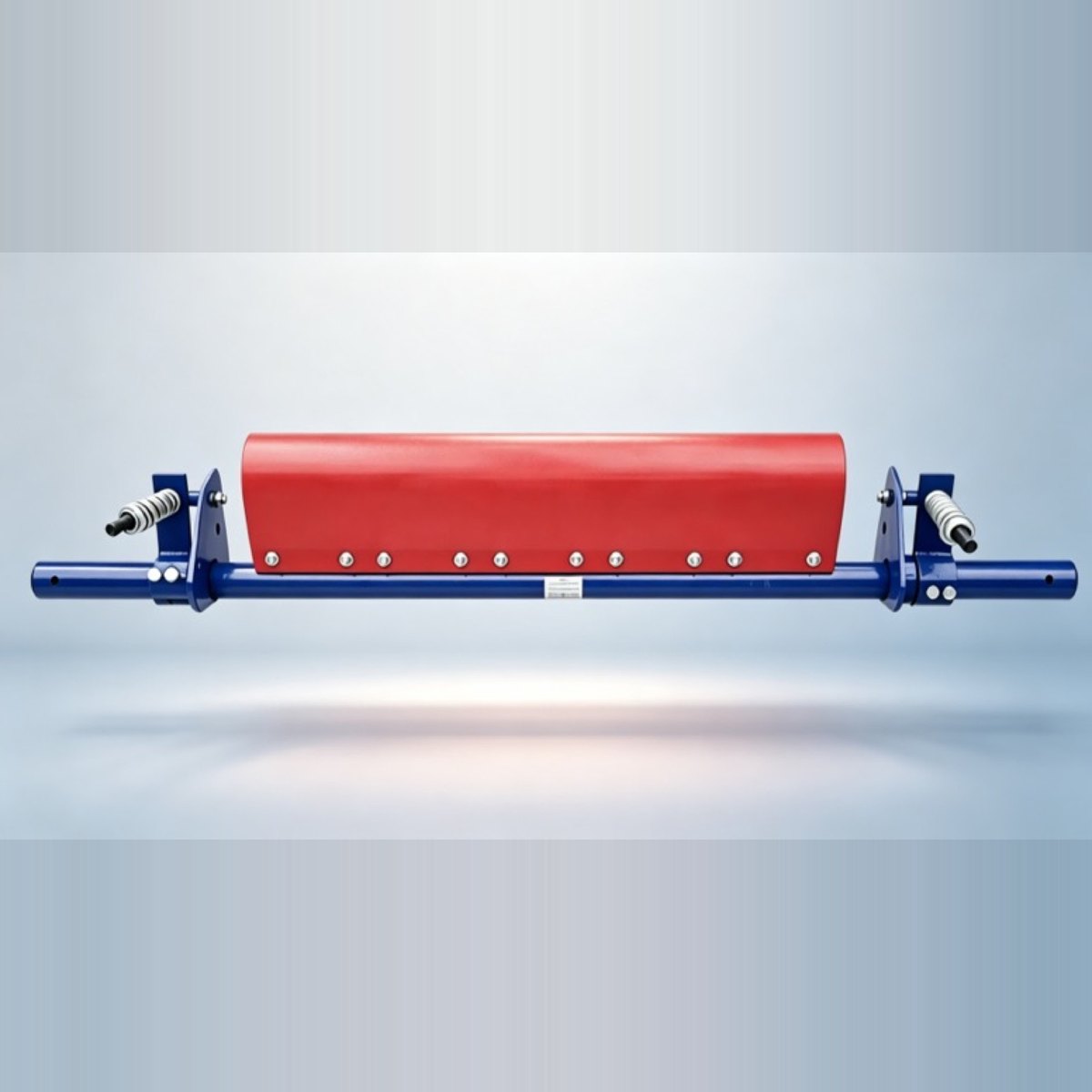

Polyurethane Cleaner
聚氨酯清扫器
A polyurethane conveyor belt cleaner for medium-abrasion duty, with a low-friction blade compound that cleans without nicking the belt cover. It strips carry-back without the belt damage a hard blade can cause, and suits belts you intend to keep for years.
- SKU prefixCLEANERS-PLV
- MOQ10 pcs
- Lead time1 month
- StandardPLV
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: CLEANERS-PLV
Overview
Polyurethane Cleaner at a Glance
PolyurethaneBlade
Spring tensionAction
Belt-safeContact
ISO 9001 / MACertified · PLV
Usage
Usage
Polyurethane Belt Cleaner — a primary (1st-stage) scraper with a wear-resistant PU blade against the head pulley. PU holds a sharp edge far longer than rubber and resists abrasion and hydrolysis, giving reliable carryback removal on general bulk lines without the cost of an alloy blade.
Operating conditions
Operating conditions
| Working temperature | PU blades -40 °C to +80 °C; ceramic-tipped blades up to +500 °C — confirm per model. |
|---|---|
| Dusty environment | Suitable — PU or ceramic blades are unaffected by dust; no bearings to contaminate |
| Moisture & water | Suitable — PU blades and coated steel bodies take washdown; stainless for continuous wet duty |
| Corrosive environment | Stainless blade holders available — powder-coated steel for ordinary acid or alkali, stainless for high-salinity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Belt cleaners scrape carryback off the return strand so material does not build up on pulleys, idlers and structure. HBXM offers primary and secondary cleaners with polyurethane or tungsten blades rated for wet, sticky and abrasive ores.
Primary vs secondary cleaner: which do I need?
Use a primary cleaner at the head pulley for bulk carryback, then a secondary cleaner downstream for the fine residual layer.
Which blade material lasts longest?
Polyurethane suits most dry and medium-abrasive ores; tungsten or ceramic-tipped blades are best for very hard, wet and sticky materials.
Can cleaners be retrofitted to an existing conveyor?
Yes. Our cleaners mount to standard stringer widths with adjustable tension and fit most head-pulley arrangements without conveyor modification.
Highlights
Features
Polyurethane blade
PU compound wipes carryback clean while staying gentle on the belt.
Polyurethane construction
PU shell / rings resist wear and stickiness for a longer service life.
Spring tensioner
Self-adjusting spring keeps uniform blade pressure as it wears.
Self-adjusting tensioners
Spring / torque-arm tensioners keep blade contact uniform as the blade wears.
Polyurethane blade
PU compound Shore 85–95 A wipes carryback while staying gentle on the belt.
Modular mounting
Adjustable brackets fit B500–B2400 widths and head-pulley layouts.
Quality
1
Blade integrity
One-piece polyurethane blade cast to consistent Shore hardness for a clean wipe.
2
Tensioner reliability
Dual self-adjusting springs hold constant contact across the blade life.
3
Frame strength
Welded beam load-tested for pulley-side installation.
4
Finish options
Epoxy / powder coat or full stainless for port and coastal duty.
