Why is a belt cleaner important?
Without cleaning, carryback wears pulleys and idlers, causes mistracking and creates housekeeping and safety hazards under the conveyor.
PU1 · Cleaners

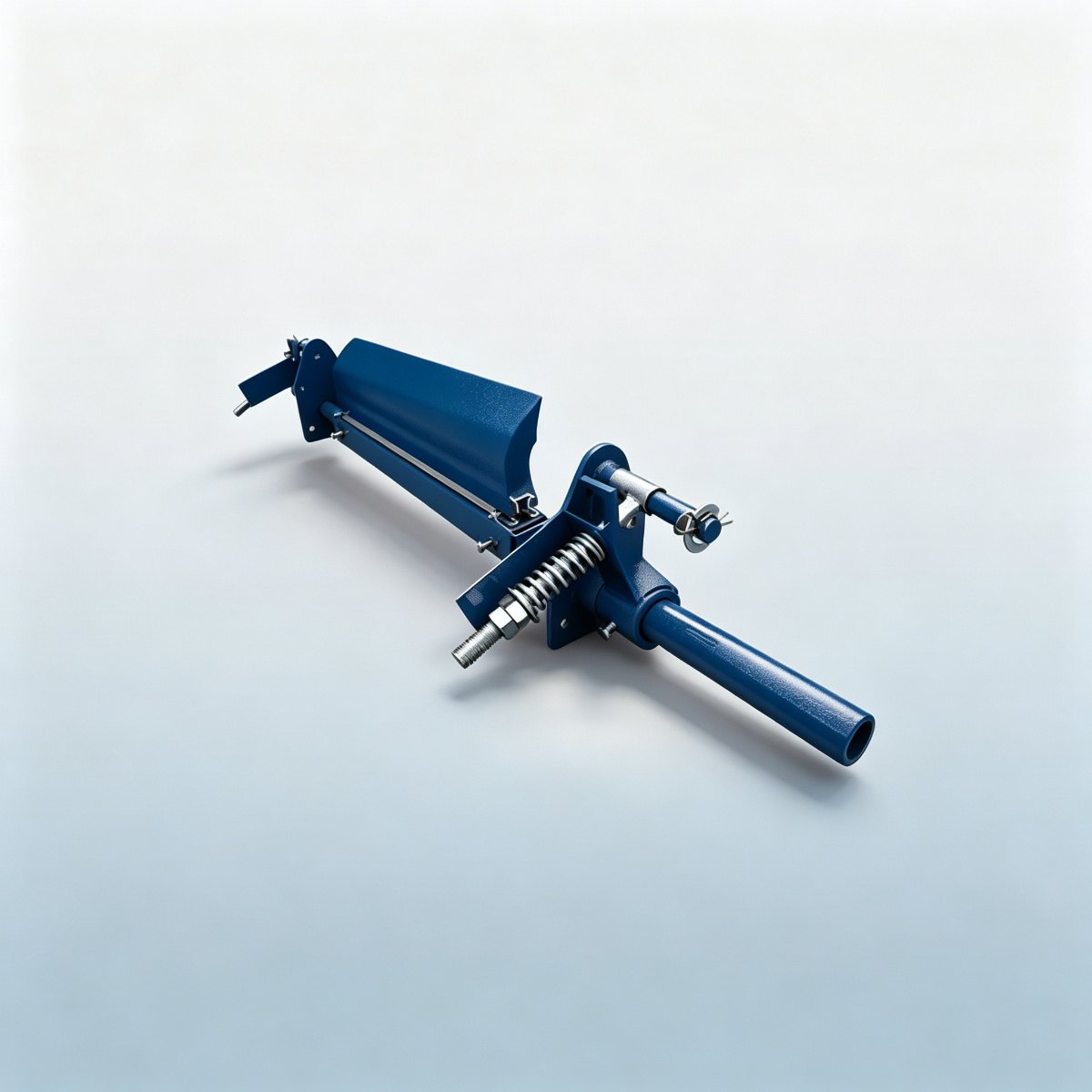

Polyurethane Cleaner
聚氨酯清扫器(2)
A secondary belt cleaner in polyurethane, mounted behind the primary to catch the residual film that scrapers leave and that ends up as build-up on return idlers.
- SKU prefixCLEANERS-PU1
- MOQ10 pcs
- Lead time1 month
- StandardPU1
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: CLEANERS-PU1
Overview
Polyurethane Cleaner at a Glance
500–2000 mmBelt width
PU / WCPBlade
75–150 mmBlade width
ISO 9001 / MACertified · PU1
Usage
Usage
Polyurethane Belt Cleaner (secondary) — a second PU-blade scraper, usually mounted just behind the primary cleaner to skim the thin residual film the first pass leaves. Together the two stages bring the belt to near-dry, cutting the carryback that would cake onto pulleys, idlers and walkways.
Operating conditions
Operating conditions
| Working temperature | PU blades -40 °C to +80 °C; ceramic-tipped blades up to +500 °C — confirm per model. |
|---|---|
| Dusty environment | Suitable — PU or ceramic blades are unaffected by dust; no bearings to contaminate |
| Moisture & water | Suitable — PU blades and coated steel bodies take washdown; stainless for continuous wet duty |
| Corrosive environment | Stainless blade holders available — powder-coated steel for ordinary acid or alkali, stainless for high-salinity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Belt cleaners scrape carryback off the return strand so material does not build up on pulleys, idlers and structure. HBXM offers primary and secondary cleaners with polyurethane or tungsten blades rated for wet, sticky and abrasive ores.
Primary vs secondary cleaner: which do I need?
Use a primary cleaner at the head pulley for bulk carryback, then a secondary cleaner downstream for the fine residual layer.
Which blade material lasts longest?
Polyurethane suits most dry and medium-abrasive ores; tungsten or ceramic-tipped blades are best for very hard, wet and sticky materials.
Can cleaners be retrofitted to an existing conveyor?
Yes. Our cleaners mount to standard stringer widths with adjustable tension and fit most head-pulley arrangements without conveyor modification.
Highlights
Features
Belt-width coverage
Covers belt widths 500–2000 mm across standard conveyor sections.
Polyurethane construction
PU shell / rings resist wear and stickiness for a longer service life.
Blade material
Blades in PU / WCP for a clean wipe and belt care.
Blade width
Blade width 75–150 mm to match the belt edge.
Self-adjusting tensioners
Spring / torque-arm tensioners keep blade contact uniform as the blade wears.
Polyurethane blade
PU compound Shore 85–95 A wipes carryback while staying gentle on the belt.
Quality
1
Blade integrity
One-piece polyurethane blade cast to consistent Shore hardness for a clean wipe.
2
Tensioner reliability
Dual self-adjusting springs hold constant contact across the blade life.
3
Frame strength
Welded beam load-tested for pulley-side installation.
4
Finish options
Epoxy / powder coat or full stainless for port and coastal duty.
FAQ
Frequently asked questions
Why fit a secondary cleaner at all?
A primary scraper removes roughly 70–80% of carry-back. The remaining film is what builds up on return idlers and misaligns the belt, so a secondary cleaner pays for itself in idler and belt life.
Where exactly does the secondary cleaner go?
Under the head pulley, behind the primary, on the return strand — at a point where the belt is still supported and the blades can be inspected safely.
Is polyurethane or tungsten carbide better?
Polyurethane is gentler on the cover and better for medium abrasion; carbide lasts longer in high-abrasion duty but needs a sound belt cover to run against.
