What is an idler frame?
It is the welded structure that mounts the idler rolls at the correct spacing and trough angle and bolts to the conveyor stringers.
FST · Frames

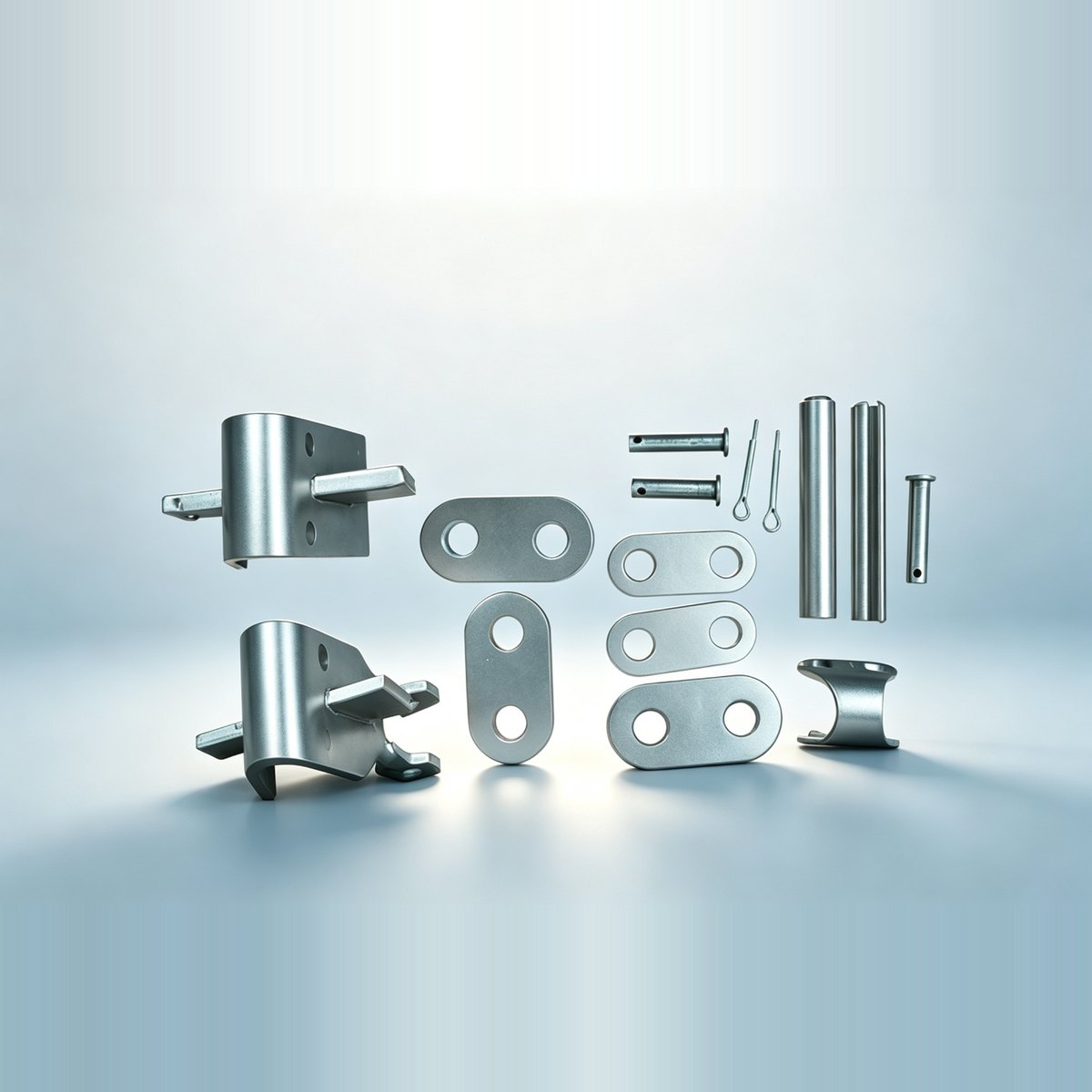

Fastener Kit
紧固件套件
Conveyor fasteners and bolt kits sized for idler frames, bearing housings and stringer assemblies — hot-dip galvanised or stainless for wet and corrosive duty.
- SKU prefixFASTENING-FST
- MOQ100 pcs
- Lead time1 month
- StandardFST
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: FASTENING-FST
Overview
Fastener Kit at a Glance
Bolts / nutsKit
Grade 8.8+Strength
Zinc / HDGFinish
ISO 9001 / MACertified · FST
Usage
Usage
Fastener Kit — the graded bolts, nuts, washers and inserts that assemble idler stations, brackets and stringers into the conveyor structure. Properly torqued, they keep every component seated under vibration and load and are the foundation that stops the whole line from working loose in service.
Operating conditions
Operating conditions
| Working temperature | Ambient service range (-20 °C to +40 °C); the coating protects the steel, stainless for aggressive sites. |
|---|---|
| Dusty environment | Suitable — all-steel structure with no bearings or seals to contaminate |
| Moisture & water | Suitable — hot-dip galvanized or stainless frames for outdoor, port and washdown service |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Idler frames and structures hold the rolls in alignment and transfer belt loads into the foundations. HBXM supplies carrying, return and training frames in galvanized or painted steel, cut and drilled to your belt width and trough angle.
How do I specify a frame for my conveyor?
Give us belt width, trough angle, idler arrangement and stringer spacing; we cut and drill to match so installation is bolt-on.
Are frames supplied pre-assembled?
We can ship loose sets for container savings or pre-welded frames for faster site erection, depending on your logistics.
Galvanized or painted steel?
Galvanizing suits outdoor and corrosive sites; painted frames are fine for enclosed or dry plants and cost less.
Highlights
Features
Complete kit
Bolts, nuts and washers matched to the roller and frame holes.
Corrosion-resistant finish
Zinc or hot-dip galvanized for outdoor and coastal plants.
Structural steel fabrication
Channel and box sections built to drawing.
Bolted or welded build
Field-adjustable or fixed assembly per site need.
Accurate hole pattern
Jig-drilled for fast, aligned roller mounting.
Galvanized option
Hot-dip or powder coat for outdoor service.
Quality
1
Weld integrity
Welds inspected for load-path continuity.
2
Dimensional accuracy
Holes and spans match the approved drawing.
3
Material certification
Steel grade verified per order.
4
Finish options
Coatings for weather and corrosion exposure.
