What is an idler frame?
It is the welded structure that mounts the idler rolls at the correct spacing and trough angle and bolts to the conveyor stringers.
STD · Frames

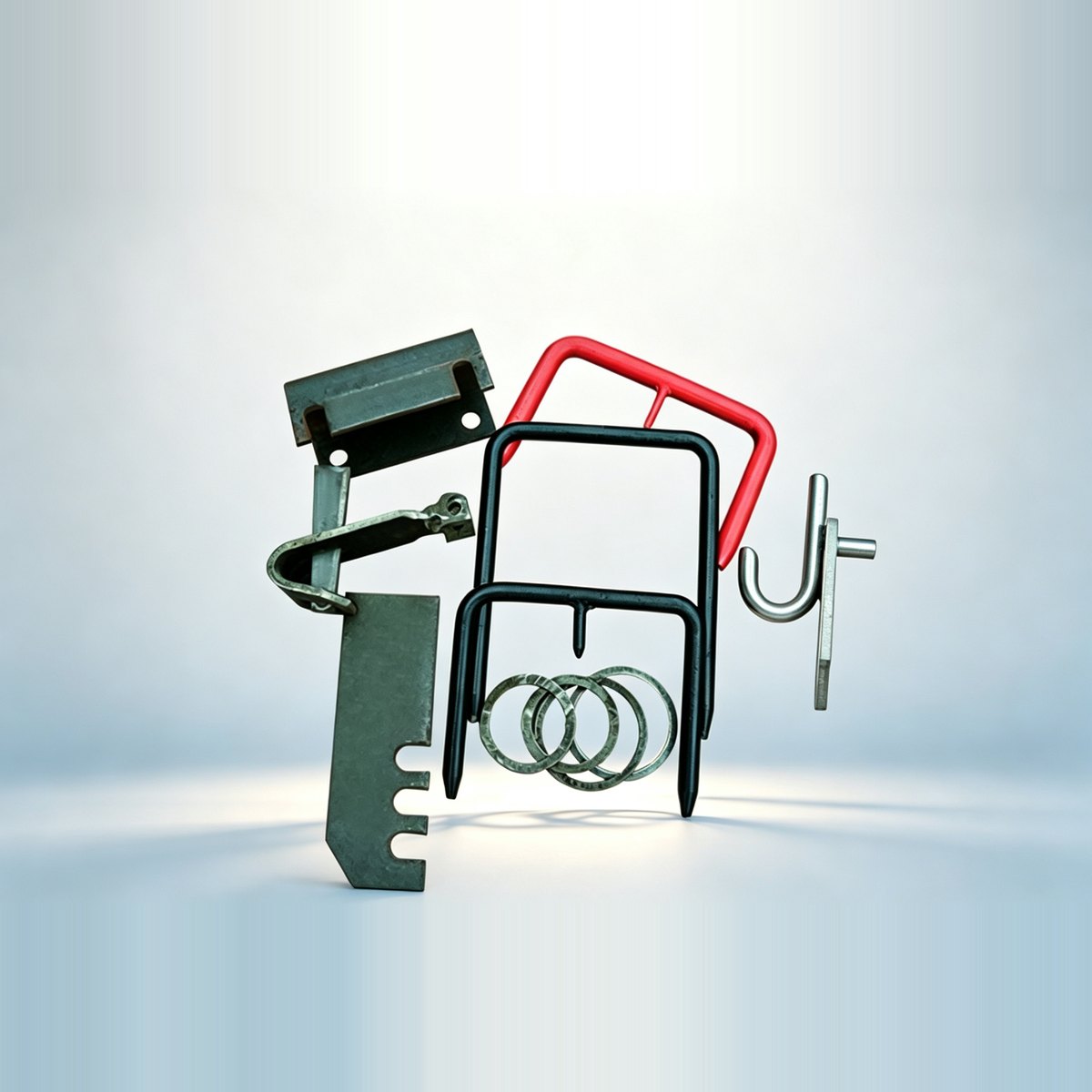

Frame Accessories
支架配件
Conveyor frames and take-up frames, cut, jig-welded and drilled to your drawing or to DTII and TD75 standards.
- SKU prefixFRAMES-STD
- MOQ100 pcs
- Lead time1 month
- StandardSTD
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: FRAMES-STD
Overview
Frame Accessories at a Glance
Brackets / seatsParts
Jig-drilledFit
Carbon / SSMaterial
ISO 9001 / MACertified · STD
Usage
Usage
Bracket Accessories — the clamps, spacers, guards and fittings that complete an idler station: belt guards, impact bars, alignment shims. They finish the structure so it is safe, adjustable and serviceable in the field.
Operating conditions
Operating conditions
| Working temperature | Ambient service range (-20 °C to +40 °C); the coating protects the steel, stainless for aggressive sites. |
|---|---|
| Dusty environment | Suitable — all-steel structure with no bearings or seals to contaminate |
| Moisture & water | Suitable — hot-dip galvanized or stainless frames for outdoor, port and washdown service |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Idler frames and structures hold the rolls in alignment and transfer belt loads into the foundations. HBXM supplies carrying, return and training frames in galvanized or painted steel, cut and drilled to your belt width and trough angle.
How do I specify a frame for my conveyor?
Give us belt width, trough angle, idler arrangement and stringer spacing; we cut and drill to match so installation is bolt-on.
Are frames supplied pre-assembled?
We can ship loose sets for container savings or pre-welded frames for faster site erection, depending on your logistics.
Galvanized or painted steel?
Galvanizing suits outdoor and corrosive sites; painted frames are fine for enclosed or dry plants and cost less.
Highlights
Features
Brackets and seats
Mounting parts for idler and pulley stations, jig-drilled for alignment.
Material choice
Carbon steel or stainless to match the plant environment.
Structural steel fabrication
Channel and box sections built to drawing.
Bolted or welded build
Field-adjustable or fixed assembly per site need.
Accurate hole pattern
Jig-drilled for fast, aligned roller mounting.
Galvanized option
Hot-dip or powder coat for outdoor service.
Quality
1
Weld integrity
Welds inspected for load-path continuity.
2
Dimensional accuracy
Holes and spans match the approved drawing.
3
Material certification
Steel grade verified per order.
4
Finish options
Coatings for weather and corrosion exposure.
FAQ
Frequently asked questions
Can you manufacture to our drawing?
Yes — that is most of what we do. Send a PDF or DWG with material, hole positions and tolerances and we will quote from it, including the welding procedure and surface finish.
What finish do you apply?
Hot-dip galvanising for outdoor and wet duty, epoxy or polyurethane paint for chemical exposure, and plain or primed steel where the customer paints on site.
How do you control hole position?
Frames are jig-welded and drilled from a fixture, so the idler mounting centres stay within tolerance across the whole batch — the usual cause of misalignment is a frame drilled by hand.
