What does a bearing housing do?
It holds the bearing concentric to the shaft, seals it from dust and water, and provides the mounting face that clamps into the idler frame.
DTII · Bearing Housings

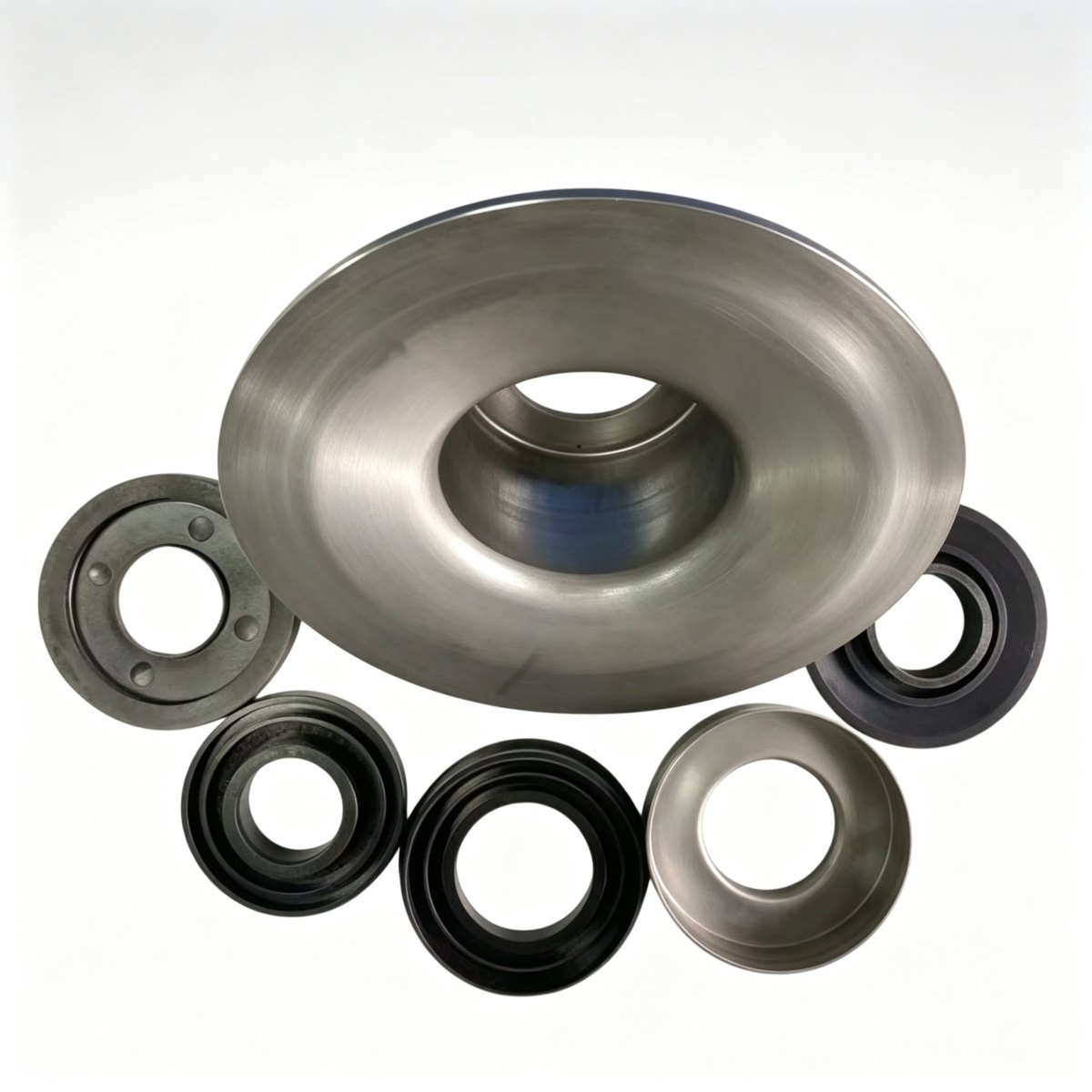

Idler Bearing Housing Kit
托辊轴承座套件
Idler bearing housings to DTII dimension, pressed and machined in-house, with labyrinth and contact seal options for dusty or wet service.
- SKU prefixHOUSINGS-DTII
- MOQ100 pcs
- Lead time1 month
- StandardDTII
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: HOUSINGS-DTII
Overview
Idler Bearing Housing Kit at a Glance
DTIIStandard
Sealed capProtection
InterchangeFit
ISO 9001 / MACertified · DTII
Usage
Usage
Idler Bearing-Seat Kit (DTII) — the pressed housing, bearing and double-labyrinth seal assembly built to the DTII standard, ready to fit an idler. Supplying it as a kit guarantees the right tolerances and seal stack so idlers run true and stay protected; the longer labyrinth gives the best dust and water sealing of the common standards.
Operating conditions
Operating conditions
| Working temperature | Ambient range (-20 °C to +40 °C); seal and grease rated to about +80 °C continuous. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Bearing housings seal and locate the idler bearing inside the roll. HBXM stamped housings follow TK and DTII patterns with precision-machined seats and labyrinth grooves that lock grease in and keep contaminants out.
TK vs DTII housing: which pattern do I need?
TK is the common CIS and mining pattern; DTII is the Chinese national belt-conveyor standard. Choose the pattern your idler was built to.
Are HBXM housings interchangeable with original rolls?
Yes, our TK and DTII housings are dimensioned to standard shaft and bore sizes so they drop into existing idler assemblies.
How do I match a housing to my idler?
Match the shaft diameter, bearing bore and sealing pattern; we list these per model so you can cross-reference your current roll.
What is a pillow block bearing?
A pillow block bearing is a bearing set in a cast or stamped housing that bolts to a frame. In belt conveyors the same stamped housing (TK or DTII pattern) seals the idler bearing inside the roll.
What is the difference between a pillow block and a flanged bearing?
A pillow block mounts through bolt holes in its base to a flat surface; a flanged bearing mounts through its round flange to a face. Choose based on your frame geometry and the direction of the load.
Highlights
Features
DTII fit
Standard DTII pattern seats common roller assemblies directly.
Sealed labyrinth cap
Blocks dust and moisture at the bearing for long life.
Precision casting
Dimensional accuracy for a concentric shaft and sealing seat.
Sealed labyrinth cap
Blocks dust and moisture at the bearing for long life.
Standard interchange
TK, DTII and TB patterns fit common roller assemblies.
Robust material
Grey cast iron or pressed steel for the duty load.
Quality
1
Dimensional accuracy
Bore and seat checked to tolerance.
2
Seal reliability
Cap and labyrinth keep grease in and dirt out.
3
Material integrity
Casting / steel verified for the load rating.
4
Finish options
Coatings for abrasive, wet and coastal duty.
