What is the difference between carrying and return idlers?
Carrying idlers support the loaded top strand of the belt; return idlers support the empty bottom strand on its way back to the tail.
RTN · Idlers

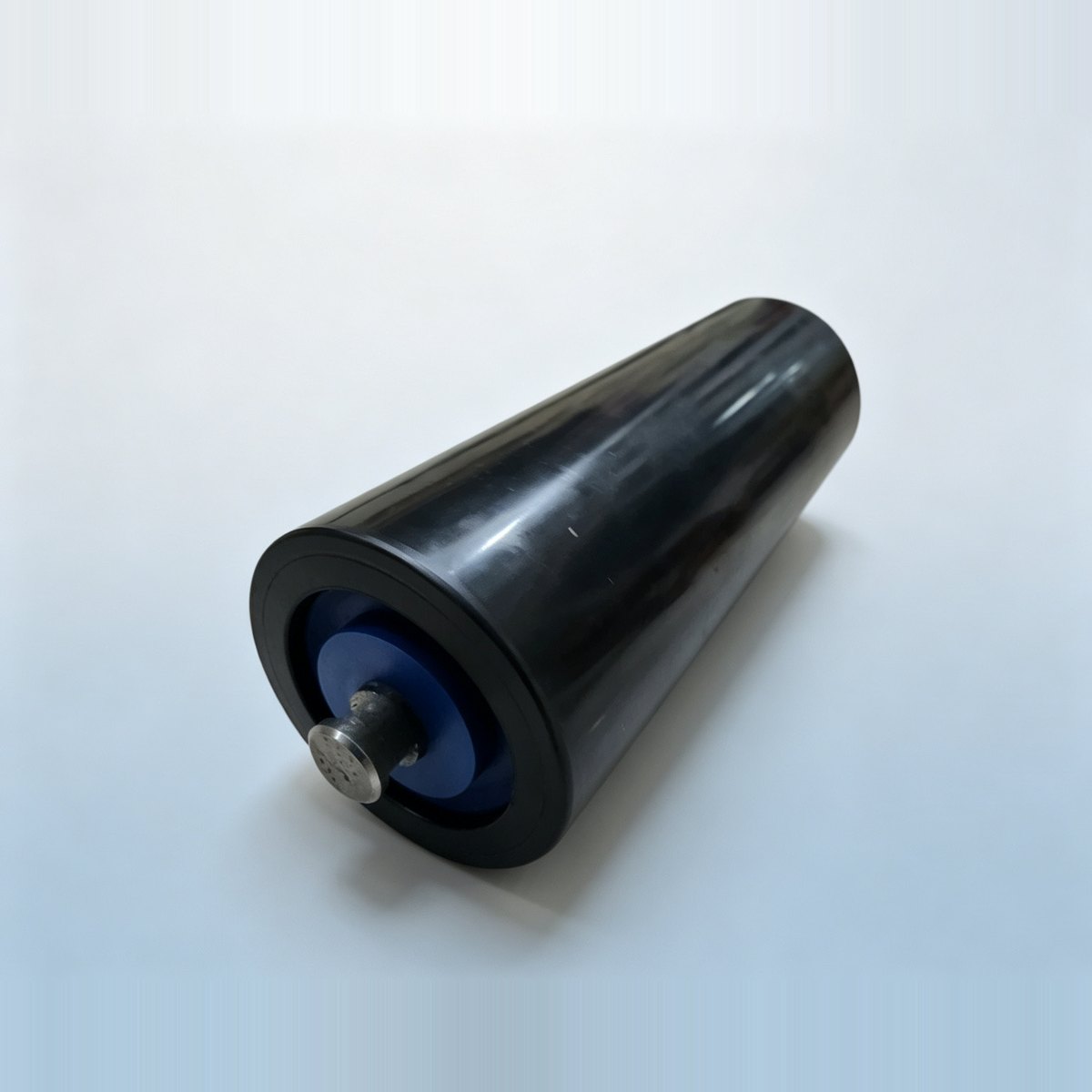

Polyethylene (PE) Idler
聚乙烯托辊
Plastic conveyor rollers in UHMWPE — a light, corrosion-free, non-marking conveyor belt roller. They shed sticky fines off the return strand and are noticeably lighter than steel, which is what takes load off the bearings on heavy duty conveyor rollers.
- SKU prefixIDLERS-RTN
- MOQ100 pcs
- Lead time1 month
- StandardRTN
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: IDLERS-RTN
Overview
Polyethylene (PE) Idler at a Glance
89–159 mmShell Ø
500–1600 mmBelt width
6204–6306Bearing
ISO 9001 / MACertified · RTN
Usage
Usage
HDPE (Polyethylene) Idler — a lightweight idler with a polyethylene shell that will not rust or conduct. For wet, coastal, chemical or underground (non-spark) duty it outlasts steel and cuts rotating mass, lowering belt pull and noise.
Operating conditions
Operating conditions
| Working temperature | Ambient service range (-20 °C to +40 °C); sealed bearings and PU or ceramic parts tolerate wider material temperatures. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Idlers are the rotating rollers that support the conveyor belt and the bulk load traveling on it. HBXM idlers cover belt widths up to 2400 mm and trough angles of 20 deg, 35 deg or 45 deg, with multi-labyrinth sealed bearings built for continuous duty in dust, moisture and fine powder.
Why use a self-aligning idler?
A self-aligning idler automatically corrects belt mistracking, reducing edge wear, spillage and unplanned downtime.
What bearing seals does HBXM use?
We use non-contact multi-labyrinth seals that keep grease in and keep dust, water and fine powder out for a long service life.
Can idlers handle high-capacity mining lines?
Yes. Our heavy-duty series is specified for mines, ports and power plants with high belt speeds, large lump sizes and continuous operation.
What are conveyor rollers?
Conveyor rollers, also called idlers, are the rotating cylinders that carry the belt and the material on it. HBXM makes them in steel, UHMW-PE, nylon and polyurethane to suit different loads, belt speeds and environments.
How much do conveyor rollers cost?
Roller price depends on diameter, length, material (steel, UHMW-PE, polyurethane) and order quantity. Send your conveyor specs — belt width, load and environment — and we will quote an exact price and lead time.
What is a polyurethane conveyor roller used for?
Polyurethane rollers resist abrasion, oils and impact better than steel and run quieter, so they suit wet, sticky or abrasive material and applications where belt marking matters.
Highlights
Features
Precision shell Ø
Diameter range Ø89–159 mm with radial runout ≤0.5 mm for smooth, low-resistance rotation.
PE construction
Polyethylene roller is non-stick and corrosion-free.
Belt-width coverage
Covers belt widths 500–1600 mm across standard conveyor sections.
Bearing size
Bearings 6204–6306 (C3 clearance) for long, stable service life.
Sealing system
Seals LS / CS / DS block dust and moisture from the cavity.
Concentric press-fit housing
Cold-pressed stamped housings deliver a permanent, aligned seat on the tube ends.
Quality
1
Shell integrity
Verified Q235 / SS400 tube wall thickness for the rated load class.
2
Sealing reliability
Triple-labyrinth system keeps contaminants out of the bearing cavity.
3
Bearing life
C3 bearings chosen by load and speed for a long, stable service life.
4
Finish options
Coatings matched to dust, moisture and corrosive plant conditions.
FAQ
Frequently asked questions
Will a plastic conveyor belt roller carry the same load as a steel one?
On light and medium duty, yes — the UHMWPE shell carries the same belt weight and runs quieter. On heavy duty conveyor rollers the gain is different: the roller weighs a fraction of steel, so bearing load and starting torque both fall.
Do plastic rollers wear faster than steel?
The shell wears differently rather than faster. UHMWPE is soft enough to be non-marking, so it protects the belt cover, but it scores in sharp, hot or highly abrasive duty — use steel there and keep plastic for wet, sticky and corrosive service.
Which sizes and shaft types can you supply?
Standard DTII and TD75 diameters with flat, through or stub shafts, plus OEM sizes to your drawing. Send the belt width, the troughing angle and the mounting centres and we will match the set.
