What is the difference between carrying and return idlers?
Carrying idlers support the loaded top strand of the belt; return idlers support the empty bottom strand on its way back to the tail.
SPR · Idlers

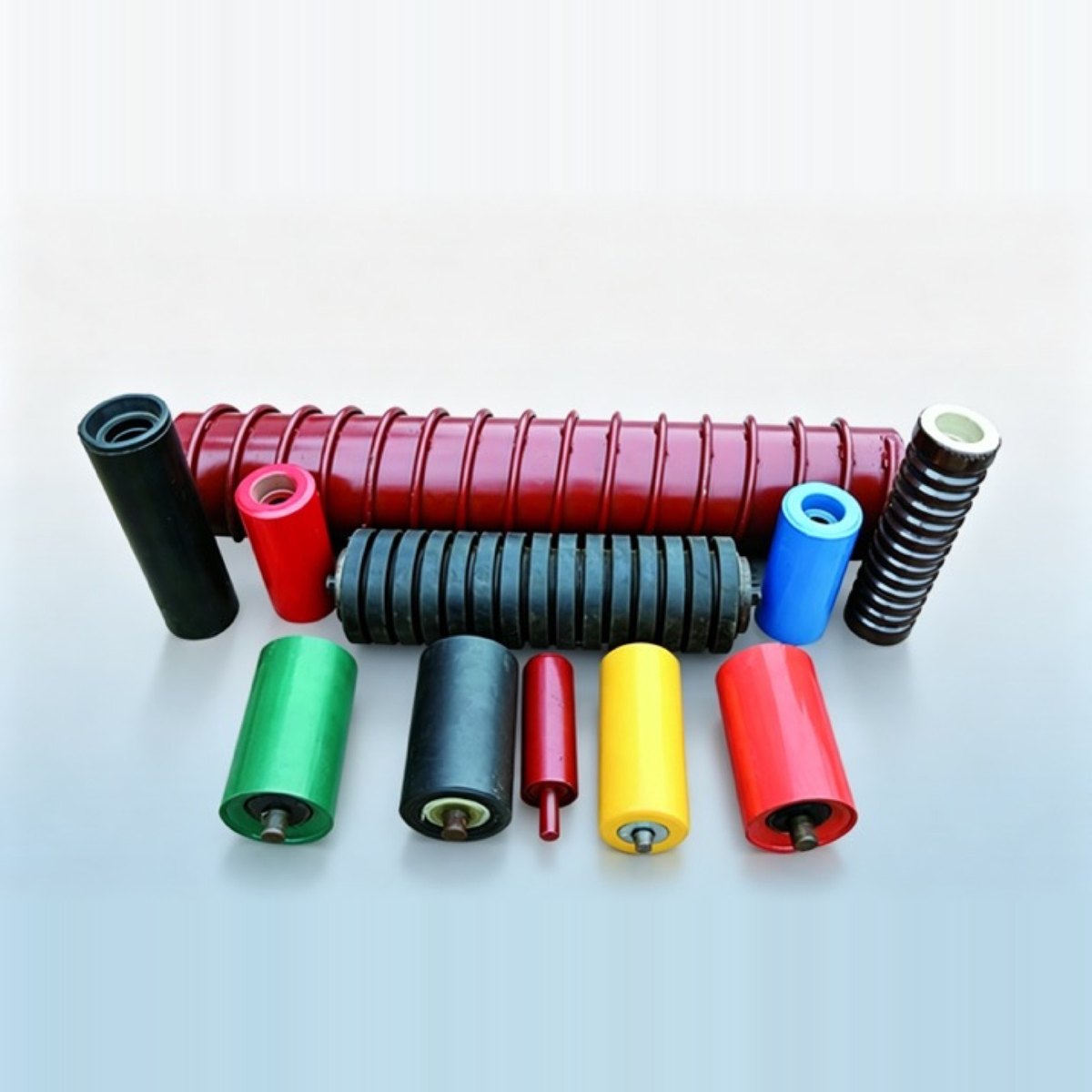

Spiral Idler
螺旋托辊
Spiral roller conveyor idlers that self-clean and self-centre at the same time — the practical answer to sticky, wet or stringy material that wraps a plain roller.
- SKU prefixIDLERS-SPR
- MOQ100 pcs
- Lead time1 month
- StandardSPR
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: IDLERS-SPR
Overview
Spiral Idler at a Glance
Spiral ribsDesign
Anti-wrapAction
Self-cleanEffect
ISO 9001 / MACertified · SPR
Usage
Usage
Spiral Idler — an idler with a helical (screw) surface that, as it turns, throws sticky carryback off the return belt and self-cleans. It is the fix for return strands that cake up with wet clay or coal in wash-down and high-moisture plants.
Operating conditions
Operating conditions
| Working temperature | Ambient service range (-20 °C to +40 °C); sealed bearings and PU or ceramic parts tolerate wider material temperatures. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Idlers are the rotating rollers that support the conveyor belt and the bulk load traveling on it. HBXM idlers cover belt widths up to 2400 mm and trough angles of 20 deg, 35 deg or 45 deg, with multi-labyrinth sealed bearings built for continuous duty in dust, moisture and fine powder.
Why use a self-aligning idler?
A self-aligning idler automatically corrects belt mistracking, reducing edge wear, spillage and unplanned downtime.
What bearing seals does HBXM use?
We use non-contact multi-labyrinth seals that keep grease in and keep dust, water and fine powder out for a long service life.
Can idlers handle high-capacity mining lines?
Yes. Our heavy-duty series is specified for mines, ports and power plants with high belt speeds, large lump sizes and continuous operation.
What are conveyor rollers?
Conveyor rollers, also called idlers, are the rotating cylinders that carry the belt and the material on it. HBXM makes them in steel, UHMW-PE, nylon and polyurethane to suit different loads, belt speeds and environments.
How much do conveyor rollers cost?
Roller price depends on diameter, length, material (steel, UHMW-PE, polyurethane) and order quantity. Send your conveyor specs — belt width, load and environment — and we will quote an exact price and lead time.
What is a polyurethane conveyor roller used for?
Polyurethane rollers resist abrasion, oils and impact better than steel and run quieter, so they suit wet, sticky or abrasive material and applications where belt marking matters.
Highlights
Features
Spiral design
Helical ribs shed sticky material and stop belt wrap.
Spiral ribs
Helical ribs shed material and stop belt wrap.
Anti-wrap action
Open helix clears carryback without manual cleaning.
Precision ERW steel shell
Tight radial runout ≤0.5 mm gives smooth, low-resistance rotation and long belt life.
Multi-stage labyrinth sealing
LS / CS / DS seals block dust, moisture and fine material from reaching the bearing cavity.
Long-life bearings
C3 clearance deep-groove ball bearings selected for 50,000+ operating hours.
Quality
1
Shell integrity
Verified Q235 / SS400 tube wall thickness for the rated load class.
2
Sealing reliability
Triple-labyrinth system keeps contaminants out of the bearing cavity.
3
Bearing life
C3 bearings chosen by load and speed for a long, stable service life.
4
Finish options
Coatings matched to dust, moisture and corrosive plant conditions.
FAQ
Frequently asked questions
Why does a spiral profile help?
The helical surface keeps pushing material sideways off the roller, so nothing wraps and builds up, and the same bias helps drag the belt back toward centre.
Can spiral idlers be used on the return strand?
Yes — they are most often used on the return strand, where wrapping is worst, but they also work in carrying sets for sticky material.
Do they wear the belt faster?
The contact area is lower than a plain roller, but correctly sized spiral rolls do not measurably shorten belt life; they prevent the build-up that does.
