What safety devices does a conveyor need?
At minimum, pull-cord emergency stop along the length, plus belt sway and speed switches that trip the drive on fault.
SPD · Safety Devices

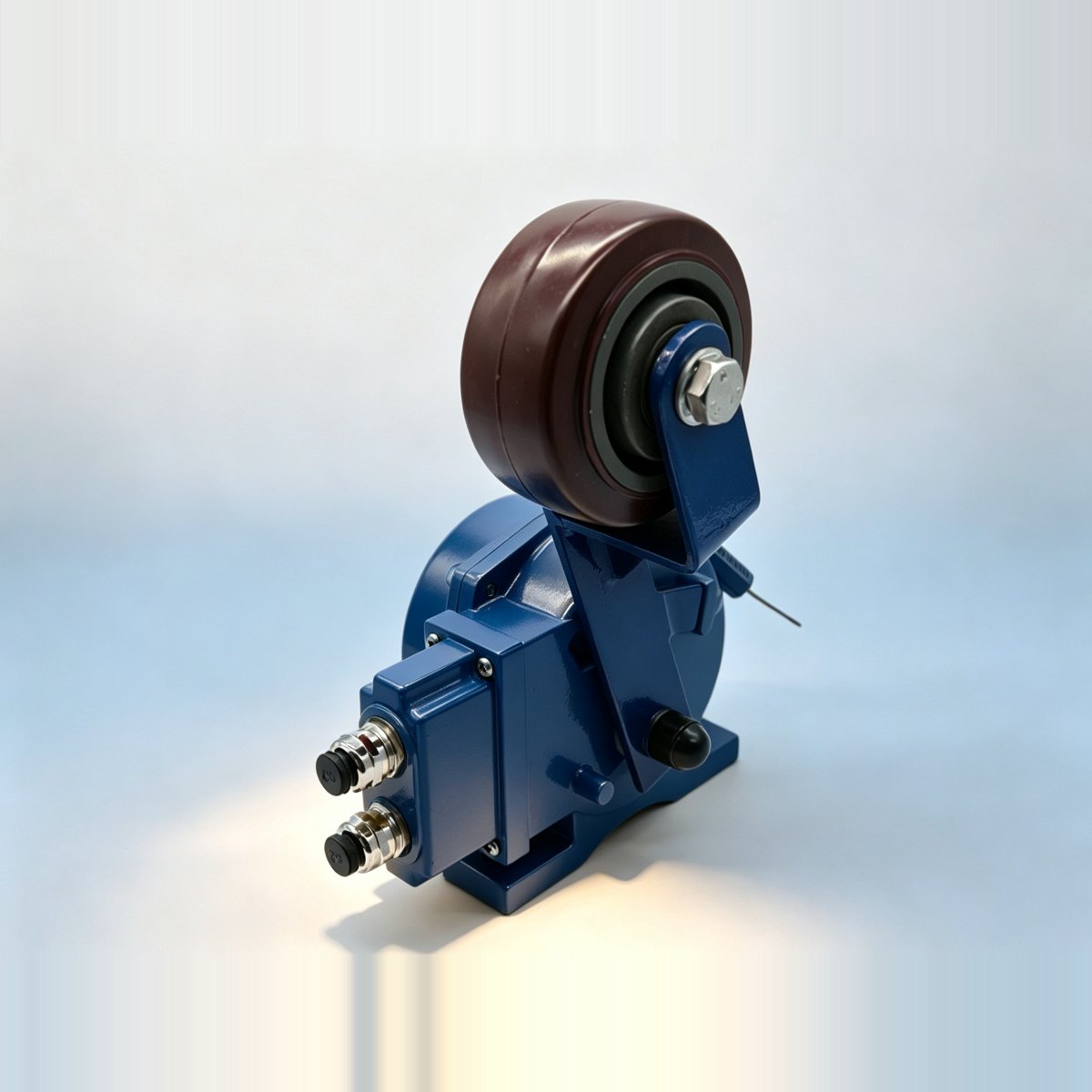

Belt Speed Monitor
皮带速度监测器
Belt speed sensors that detect slip, overload and zero speed before they turn into a fire, a buried transfer point or a wrecked pulley.
- SKU prefixSAFETY-SPD
- MOQ10 pcs
- Lead time1 month
- StandardSPD
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: SAFETY-SPD
Overview
Belt Speed Monitor at a Glance
Zero-speedDetect
Slip / stallAlarm
IP65Protection
ISO 9001 / MACertified · SPD
Usage
Usage
Belt Speed Monitor (Zero-Speed Switch) — a sensor on a non-drive pulley, usually the tail, that watches belt speed and trips the stop if the belt stalls or drops below a set speed while the drive is still running. A stalled belt under a running drive piles material, overheats and can tear or start a fire at the drive; this switch catches that failure before it escalates. Indispensable on inclined, long or unattended conveyors.
Operating conditions
Operating conditions
| Working temperature | Ambient range (-20 °C to +40 °C); IP65 enclosures for wet and dusty sites. |
|---|---|
| Dusty environment | Suitable — IP65 enclosures protect switches, pull-cords and sensors |
| Moisture & water | Suitable — IP65 enclosures for wet, humid and washdown areas |
| Corrosive environment | IP65 enclosures in coated steel or stainless steel for corrosion-prone plants |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Safety devices protect personnel and equipment around the conveyor. HBXM supplies pull-cord switches, belt sway and speed monitors, and emergency stops that integrate with your plant shutdown logic.
How does a pull-cord switch work?
A tensioned cable runs the conveyor length; pulling it anywhere latches the switch and cuts power to the drive through your shutdown logic.
Are these devices explosion-proof?
We offer Ex d and Ex ib rated units for coal, grain and other hazardous areas; specify your zone when ordering.
Can they connect to an existing PLC?
Yes. Our switches output dry contacts or 4-20 mA signals that drop into standard PLC and relay shutdown circuits.
Highlights
Features
Zero-speed detection
Trips on belt slip or stall for safe shut-down.
Adjustable setpoint
Tuned to your trip threshold for reliable alarm.
Belt misalignment switch
Trips on drift to protect the frame and belt.
Pull-cord emergency
Full-length rope stop along the conveyor length.
Zero-speed monitor
Detects belt slip or stall for safe shutdown.
Rugged enclosure
Die-cast or stainless, IP65 sealed.
Quality
1
Trip reliability
Mechanism tested for repeatable action.
2
Seal integrity
Enclosure keeps dust and washdown out.
3
Electrical safety
Isolated contacts and certified components.
4
Finish options
Coatings for corrosive and outdoor duty.
