How do self-aligning idlers work?
A guide roll senses belt edge pressure and pivots the whole idler set so the belt is nudged back toward the centerline.
RTN · Training Idlers

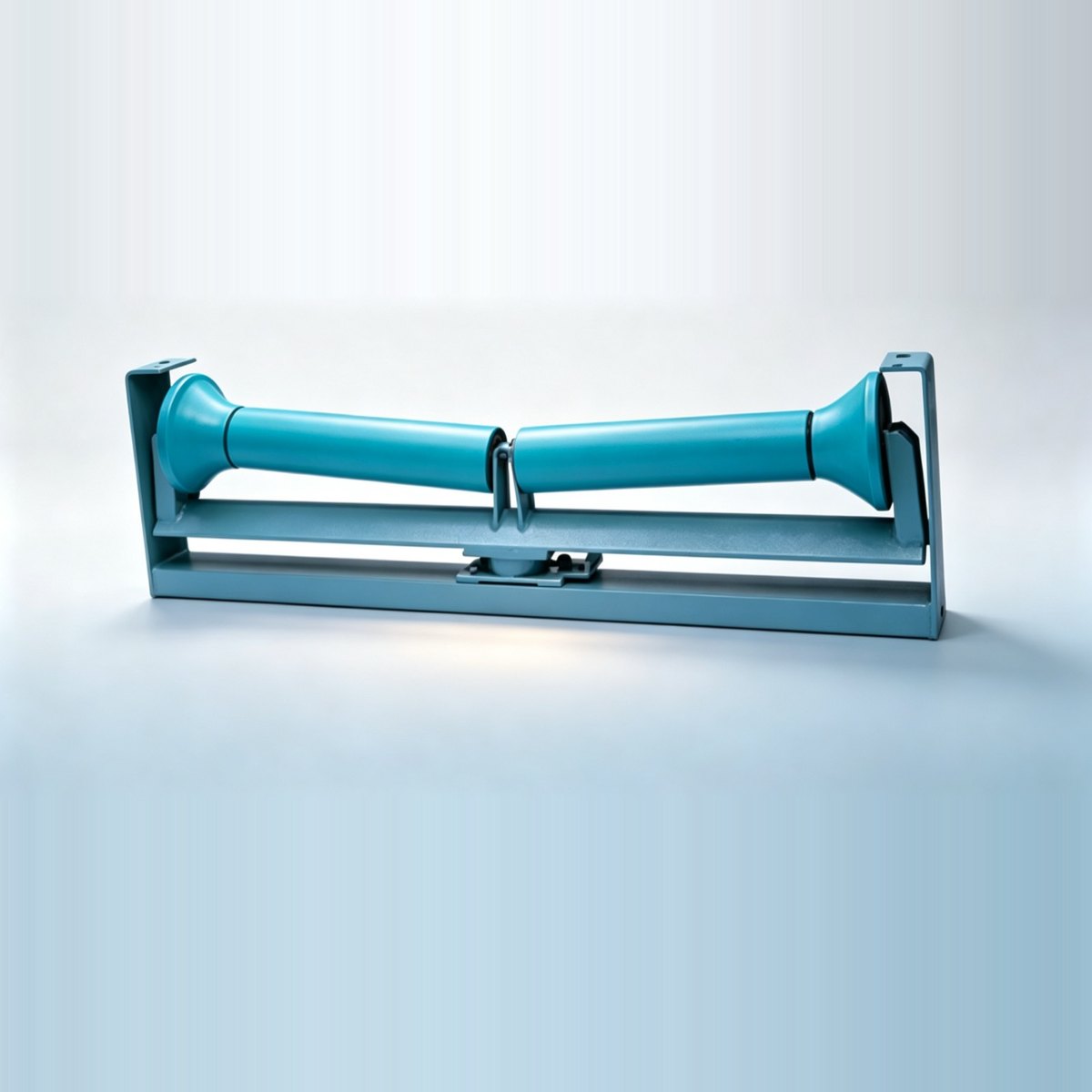

Return Training Idler Set
回程纠偏托辊组
Return training idlers that straighten the return strand and stop the belt rubbing the frame — the quiet fix for edge wear and sudden belt failures.
- SKU prefixTRACKING-RTN
- MOQ10 pcs
- Lead time1 month
- StandardRTN
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: TRACKING-RTN
Overview
Return Training Idler Set at a Glance
89–159 mmPulley Ø
500–1600 mmBelt width
DTII / TD75 / ISOStandard
ISO 9001 / MACertified · RTN
Usage
Usage
Return-Side Training Idler Set — self-aligning idlers on the empty (return) strand that keep the belt centred after it leaves the head pulley. Return mistracking smears carryback on structure and chews edges, so this set protects the long, exposed back run.
Operating conditions
Operating conditions
| Working temperature | Ambient service range (-20 °C to +40 °C); sealed bearings rated for the same band. |
|---|---|
| Dusty environment | Suitable — labyrinth or IP65 seals keep dust out of the bearings |
| Moisture & water | Suitable — IP65 sealing for outdoor, port, washdown and humid duty |
| Corrosive environment | Powder-coated for ordinary acid or alkali · Galvanized for coastal and semi-outdoor · Stainless for high-salinity and high-humidity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Training idlers automatically steer the belt back to center when it begins to drift. HBXM self-aligning idlers use a pivoting frame that responds to belt edge force, correcting mistracking before it damages the belt or structure.
Where should training idlers be placed?
Place them every 10 to 15 idlers along both carry and return strands, especially after transfers and on long centers.
Do they need a power supply?
No. They are fully mechanical and react to belt forces, so they work without sensors, wiring or controls.
How often do they need adjustment?
Once installed they are self-correcting and typically need no routine adjustment, only inspection during planned maintenance.
Highlights
Features
Precision shell Ø
Guide-roll Ø89–159 mm machined for smooth, stable belt tracking.
Belt-width coverage
Covers belt widths 500–1600 mm across standard conveyor sections.
Spiral / rubber disc rolls
Guide the belt back to center automatically as it drifts.
Free-pivot frame
Responds to mistracking without external power.
Heavy-duty shaft
Machined for smooth rotation under load.
Sealed bearings
Labyrinth protection in dusty plants.
Quality
1
Guidance reliability
Geometry tuned for effective, stable centering.
2
Bearing protection
Seals keep contaminants from the cavity.
3
Frame strength
Welded / pivoted structure load-tested.
4
Finish options
Coatings for abrasive and wet duty.
