Why is a belt cleaner important?
Without cleaning, carryback wears pulleys and idlers, causes mistracking and creates housekeeping and safety hazards under the conveyor.
BRS · Cleaners

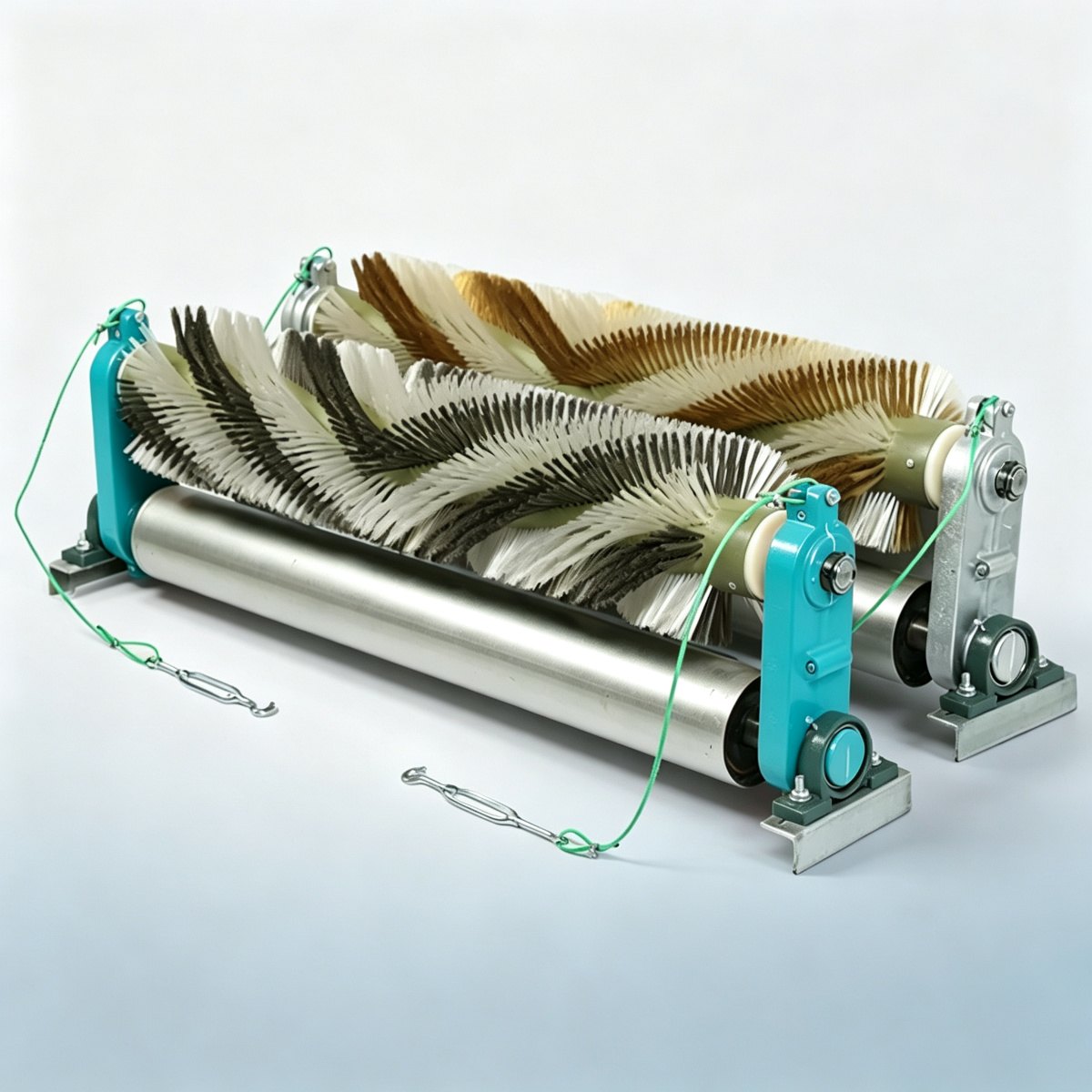

Rotary Brush Cleaner
滚刷清扫器
Rotary conveyor brush cleaners for fine, sticky or fibrous material that a scraper alone cannot shift — motorised or belt-driven, with adjustable contact pressure.
- SKU prefixCLEANERS-BRS
- MOQ10 pcs
- Lead time1 month
- StandardBRS
Configure & add to inquiry cart
Choose the specs for your application. We will reply with pricing, FOB and lead time for your selection.
Current SKU: CLEANERS-BRS
Overview
Rotary Brush Cleaner at a Glance
500–1600 mmBelt width
0.37–1.1 kWPower
DTII / TD75 / ISOStandard
ISO 9001 / MACertified · BRS
Usage
Usage
Rotary Brush Cleaner — a motor-driven brush that rotates against the return belt to flick off fine powder, dust, snow and ice that scrapers cannot reach. Paired after the primary and secondary scrapers on dusty, cold or powdery lines (cement, fertiliser, flour, winter operation) and on cleated or patterned belts where a blade cannot follow the surface.
Operating conditions
Operating conditions
| Working temperature | PU blades -40 °C to +80 °C; ceramic-tipped blades up to +500 °C — confirm per model. |
|---|---|
| Dusty environment | Suitable — PU or ceramic blades are unaffected by dust; no bearings to contaminate |
| Moisture & water | Suitable — PU blades and coated steel bodies take washdown; stainless for continuous wet duty |
| Corrosive environment | Stainless blade holders available — powder-coated steel for ordinary acid or alkali, stainless for high-salinity sites |
| Certification | MA coal-mine safety certified versions available — confirm the certified SKUs for your project |
| Outdoor use | Suitable — coated and stainless options for coastal and weathering service |
Technical overview
Belt cleaners scrape carryback off the return strand so material does not build up on pulleys, idlers and structure. HBXM offers primary and secondary cleaners with polyurethane or tungsten blades rated for wet, sticky and abrasive ores.
Primary vs secondary cleaner: which do I need?
Use a primary cleaner at the head pulley for bulk carryback, then a secondary cleaner downstream for the fine residual layer.
Which blade material lasts longest?
Polyurethane suits most dry and medium-abrasive ores; tungsten or ceramic-tipped blades are best for very hard, wet and sticky materials.
Can cleaners be retrofitted to an existing conveyor?
Yes. Our cleaners mount to standard stringer widths with adjustable tension and fit most head-pulley arrangements without conveyor modification.
Highlights
Features
Belt-width coverage
Covers belt widths 500–1600 mm across standard conveyor sections.
Motor power
Rated 0.37–1.1 kW to match your conveyor duty.
Self-adjusting tensioners
Spring / torque-arm tensioners keep blade contact uniform as the blade wears.
Polyurethane blade
PU compound Shore 85–95 A wipes carryback while staying gentle on the belt.
Modular mounting
Adjustable brackets fit B500–B2400 widths and head-pulley layouts.
Quick blade swap
Cartridges swap without removing the frame, cutting downtime.
Quality
1
Blade integrity
One-piece polyurethane blade cast to consistent Shore hardness for a clean wipe.
2
Tensioner reliability
Dual self-adjusting springs hold constant contact across the blade life.
3
Frame strength
Welded beam load-tested for pulley-side installation.
4
Finish options
Epoxy / powder coat or full stainless for port and coastal duty.
FAQ
Frequently asked questions
When is a brush cleaner better than a scraper?
With fibrous loads (wood chips, biomass, recycled fibre) and with very fine dry dust that a blade simply rides over. Brushes also work well as a secondary stage after a primary scraper.
How do I set the brush contact pressure?
Start with light contact and increase until carry-back stops. Over-pressing is the main cause of premature bristle wear and of belt cover polishing.
What brush material should I choose?
Nylon for general duty, polypropylene where moisture or chemicals are present, and abrasion-resistant nylon where the load is gritty.
